Microcompression Tests of a BMG and a Tungsten/BMG Composite

Size-dependent mechanical properties of these materials were investigated.

Uniaxial-compression tests of micron-scale specimens (microcompression tests) of a bulk metallic glass (BMG) and of a tungsten/BMG composite have been performed to contribute to understanding of size-dependent mechanical properties of these and other, similar materials. There is increasing interest in fabricating micro- electromechanical systems from BMGs, and in fabricating kinetic-energy (ballistic) penetrators from BMGs and tungsten/ BMG composites. While the mechanical properties and deformation mechanisms of macroscopic, monolithic BMGs in bulk form are generally well understood, these properties are not necessarily equivalent for the BMG alloys cast in composite form or for micron-scale specimens. In a tungsten/BMG composite, dissolution of tungsten in the BMG matrix frequently manifests itself in the formation of complex crystalline phases and the concomitant decrease in the overall amorphous content of the matrix. Hence, it becomes important to compare the properties and deformation mechanisms of the monolithic BMG with those of the BMG as found in the composite accompanied by other phases and heterogeneities.

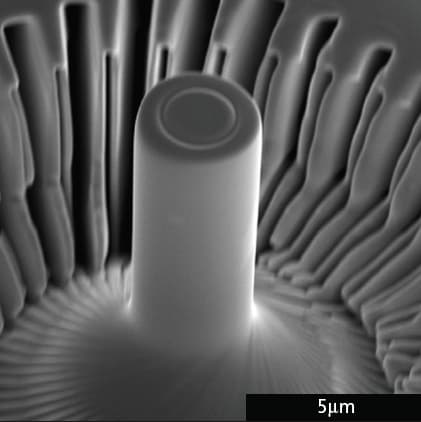

This Post Specimen of Pd40Ni40P20 was fabricated by focused-ion-beam milling.
The monolithic BMG used in these tests was made from the alloy Pd40Ni40P20. The tungsten/BMG composite used in these tests was prepared in a process that included infiltration of a proprietary hafnium-based BMG matrix into a tungsten preform. Plates of each material were lapped and polished to obtain flat, parallel faces with submicron finishes. Post specimens having diameters ranging from 2 to 10 μm and height-to- diameter ratios ranging from of 2 to 2.5 (see figure) were formed in the Pd40Ni40P20 BMG plate by focused-ion-beam milling. Post specimens were similarly formed from the tungsten/ hafnium-based BMG plate, except that because of (1) a desire to apply microcompression to only the hafnium-based BMG matrix after incorporation into the composite and (2) the limited size of individual volumes of the hafnium-based BMG material in the composite, the posts were limited to a diameter of about 4 μm.

Post specimens of both materials were compression-tested in a commercially available nanoindenter apparatus. A flat punch indenter having a square cross section of 35 by 35 μm — much wider than the post specimens — was used to ensure uniaxial compression. Bulk specimens of the Pd40Ni40P20 BMG were compression-tested in a commercially available servohydraulic loading system. In each test, the loading rate was specified to obtain a nominal strain rate of 10-4/s. The load on the specimen load and the cross-head displacement were recorded with nano-newton and sub-nanometer resolution, respectively. The specimens were deformed to a specified displacement (or strain) followed by an incremental unloading. Dimensions of the post specimens prior to testing were measured by automated analysis of high-resolution scanning electron micrographs of the specimens. Specimen stresses and strains were calculated, in the same manner as in traditional compression testing, by use of the initial specimen dimensions and the load/ displacement data.

The main qualitative conclusions drawn from the results of the tests are the following:

  • The post specimens of the Pd40Ni40P20 BMG exhibited compression strengths about 10 percent greater than those of the bulk specimens of that material. This increase in strength was attributed to decreases in densities of defects in the small specimen volumes.
  • The compressive deformations of the post specimens of Pd40Ni40P20 BMG specimens included serrated flow characterized by the initiation and propagation of many shear bands.
  • The differences in strength among the post specimens of the Pd40Ni40P20 BMG were of the order of scatter in the data, and it is not clear whether the "smaller is stronger" argument holds at the micrometer scale for BMG materials. This issue should be investigated in future studies involving more statistically significant sets of data.
  • The post specimens of the hafnium-based BMG fabricated from the tungsten/hafnium-based-BMG composite exhibited differences in behavior from monolithic specimens of the hafnium-based BMG. In particular, work hardening was observed, and there was some indication of size-dependent properties.
  • The hafnium-based BMG matrix material appeared to possess features that are typically beneficial in kinetic-energy penetrator materials. These features included high strength and relatively low strain hardening.

This work was done by Brian E. Schuster, Lee S. Magness, Laszlo J. Kecskes, and Matthew H. Ervin of the Army Research Laboratory; Qiuming Wei of the University of North Carolina; Michael K. Miller of the Oak Ridge National Laboratory; and Stephan Hruszkewycz, Todd C. Hufnagel, and Kaliat T. Ramesh of Johns Hopkins University.

ARL-0019

Topics:
Alloys Casting alloys Composite materials Hardening Materials properties Metallurgy Metals Physical Sciences
This Brief includes a Technical Support Package (TSP).
Document cover
Microcompression Tests of a BMG and a Tungsten/BMG Composite

(reference ARL-0019) is currently available for download from the TSP library.

Don't have an account?

More From SAE Media Group

    Magazine cover
    Defense Tech Briefs Magazine

    This article first appeared in the June, 2008 issue of Defense Tech Briefs Magazine (Vol. 2 No. 3).

    Read more articles from the archives here.

    Overview

    The document is a research report titled "Microcompression of Bulk Metallic Glass and Tungsten – Bulk Metallic Glass Composites," authored by Brian E. Schuster, Lee S. Magness, Laszlo J. Kecskes, Qiuming Wei, Michael K. Miller, Matthew H. Ervin, Stephan Hruszkewycz, Todd C. Hufnagel, and Kaliat T. Ramesh. It was published as ARL-RP-178 in May 2007 and is a reprint from the Proceedings of the 25th Army Science Conference held in Orlando, Florida, from November 27 to 30, 2006. The report is approved for public release, indicating that its findings can be shared widely without restrictions.

    The focus of the research is on the mechanical properties of Bulk Metallic Glass (BMG) and its composites with tungsten, particularly under microcompression conditions. BMGs are known for their unique combination of high strength, elasticity, and resistance to wear, making them suitable for various applications in advanced materials engineering. The study investigates how these materials behave when subjected to microcompression, which is a critical factor in understanding their performance in real-world applications.

    The authors detail the experimental methods used to analyze the microcompression behavior of the materials, including the preparation of samples and the techniques employed to measure their mechanical properties. The results of the study provide insights into the deformation mechanisms of BMGs and their composites, highlighting the influence of tungsten on the overall performance of the material.

    The report also includes a section on the distribution of copies, indicating that multiple copies were sent to various organizations, including the U.S. Army Research Laboratory and the Defense Technical Information Center. This suggests the importance of the findings for military applications and the interest in disseminating the research within relevant defense and engineering communities.

    In summary, this document presents significant research on the microcompression characteristics of Bulk Metallic Glass and tungsten composites, contributing to the understanding of their mechanical properties and potential applications in advanced materials. The findings are relevant for both academic research and practical applications in fields such as defense, aerospace, and materials science.
