Industrial-Scale Metal 3D Printer

June 1, 2017

Sciaky, Inc.
Chicago, IL
877-450-2518

Sciaky, Inc., a subsidiary of Phillips Service Industries, Inc. (PSI), announced recently that Airbus was scheduled to take delivery of a state-of-the-art Electron Beam Additive Manufacturing (EBAM™) 110 System. The renowned aircraft manufacturer will utilize Sciaky's industrial-scale metal 3D printing system to produce large structural parts made of titanium.

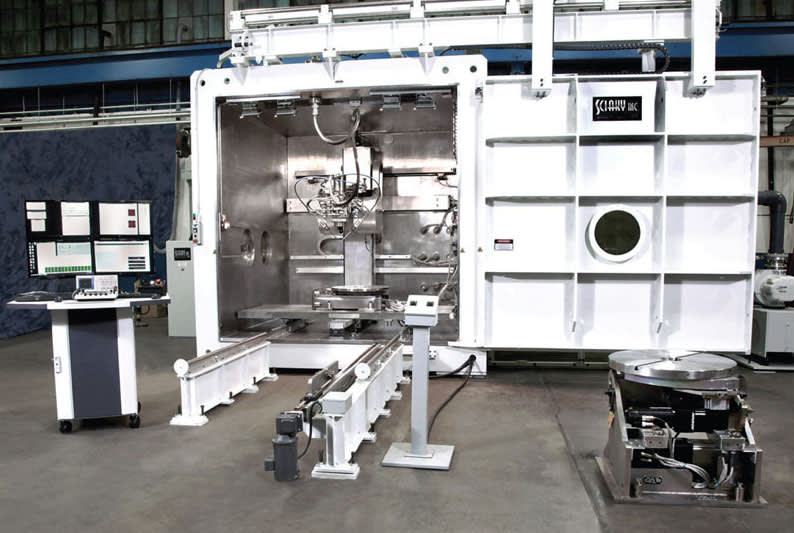

Industrial-Scale Metal 3D Printer by Sciaky, Inc.

Sciaky's EBAM process combines computer-aided design (CAD), additive manufacturing processing principles, and an electron beam heat source. Starting with a 3D model from a CAD program, Sciaky's fully-articulated, moving electron beam gun deposits metal via wire feedstock, layer by layer, until the part reaches near-net shape. From there, the near-net shape part requires heat treatment and post-production machining. In the end, there is minimal material waste.

Sciaky also brings quality and control together in one step with IRISS™ — the Interlayer Real-time Imaging and Sensing System. IRISS is the only real-time monitoring and control system in the metal 3D printing market that can sense and digitally self-adjust metal deposition with precision and repeatability. This closed-loop control is the primary reason that Sciaky's EBAM 3D printing process can deliver consistent part geometry, mechanical properties, microstructure, and metal chemistry, from the first part to the last.

As mentioned above, EBAM utilizes wire feedstock, which can accommodate a wide variety of metals and refractory alloys, such as titanium, tantalum, niobium, tungsten, Inconel, and stainless steels. Sciaky's EBAM 110 System has a work envelope of 70” (1778 mm) x 47” (1194 mm) x 63” (1600 mm). Sciaky's lineup of EBAM systems can produce parts ranging from 8 inches (203 mm) to 19 feet (5.79 meters) in length. EBAM is also the fastest deposition process in the metal additive manufacturing market, with gross deposition rates ranging from 7 to 20 lbs. (3.18 to 9.07 kg) of metal per hour.
