High-Voltage Amplifier

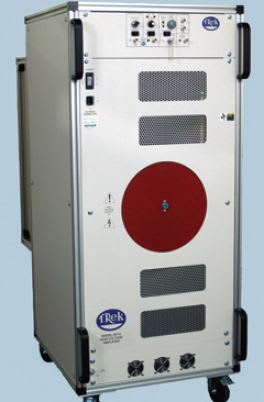

TREK (Medina, NY) offers the Model 50/12 DC-stable high-voltage linear amplifier that delivers ±50 kV performance. The bipolar amplifier features an all-solid-state design and provides control of output voltages in the range of 0 to ±50 kV DC or peak AC, with an output current range of 0 to ±12mA DC or peak AC. Slew rate is greater than 350V/μs. Small signal bandwidth is DC to greater than 20 kHz, and noise is less than 10V rms.

For Free Info Click Here
