Clock Oscillator

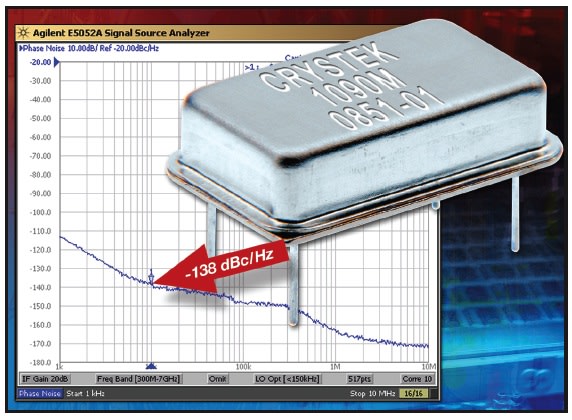

Crystek Crystals (Fort Myers, FL) has released the CCSO- 014-1090, a 1.090-GHz surface acoustic wave (SAW) clock oscillator that produces low-noise, low-jitter performance with true SineWave output, and -138 dBc/Hz phase noise at 10 kHz offset. It comes in a 14 PIN DIP hermetically sealed package, features a 12V input voltage, and generates a true sinewave with +12 dBm minimum output power. It has no sub-harmonic, and the second harmonic is -40 dBc max. Operating temperature is -55 °C to 105 °C.

For Free Info Click Here

Topics:
RF & Microwave Electronics

More From SAE Media Group

    Magazine cover
    RF & Microwave Technology Magazine

    This article first appeared in the February, 2010 issue of RF & Microwave Technology Magazine (Vol. 4 No. 1).
