Digitizer/Signal Generator

February 1, 2012

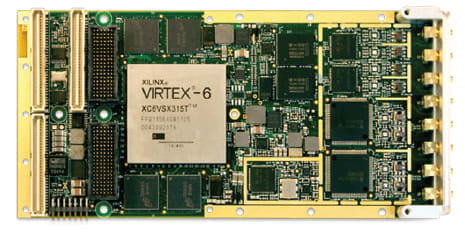

Innovative Integration (Simi Valley, CA) offers the X6-1000M that integrates highspeed digitizing and signal generation with signal processing on a PMC/XMC IO module. The coupling of the digitizing to a Virtex6 FPGA core enables architectures for SDR, Radar, and Lidar front-end sensor digitizing and processing. A PCI Express system interface sustains transfer rates over 2 GB/s for data recording and integration. The card features two 12-bit, 1-GSPS A/Ds, and two 1- GSPS, 16-bit DACs. Multiple cards can be synchronized for sampling and down-conversion. Analog input bandwidth of over 2 GHz supports wideband applications and undersampling. The sample clock is from either a low-jitter PLL or external input.
