Avionic Connector Inserts

January 10, 2011

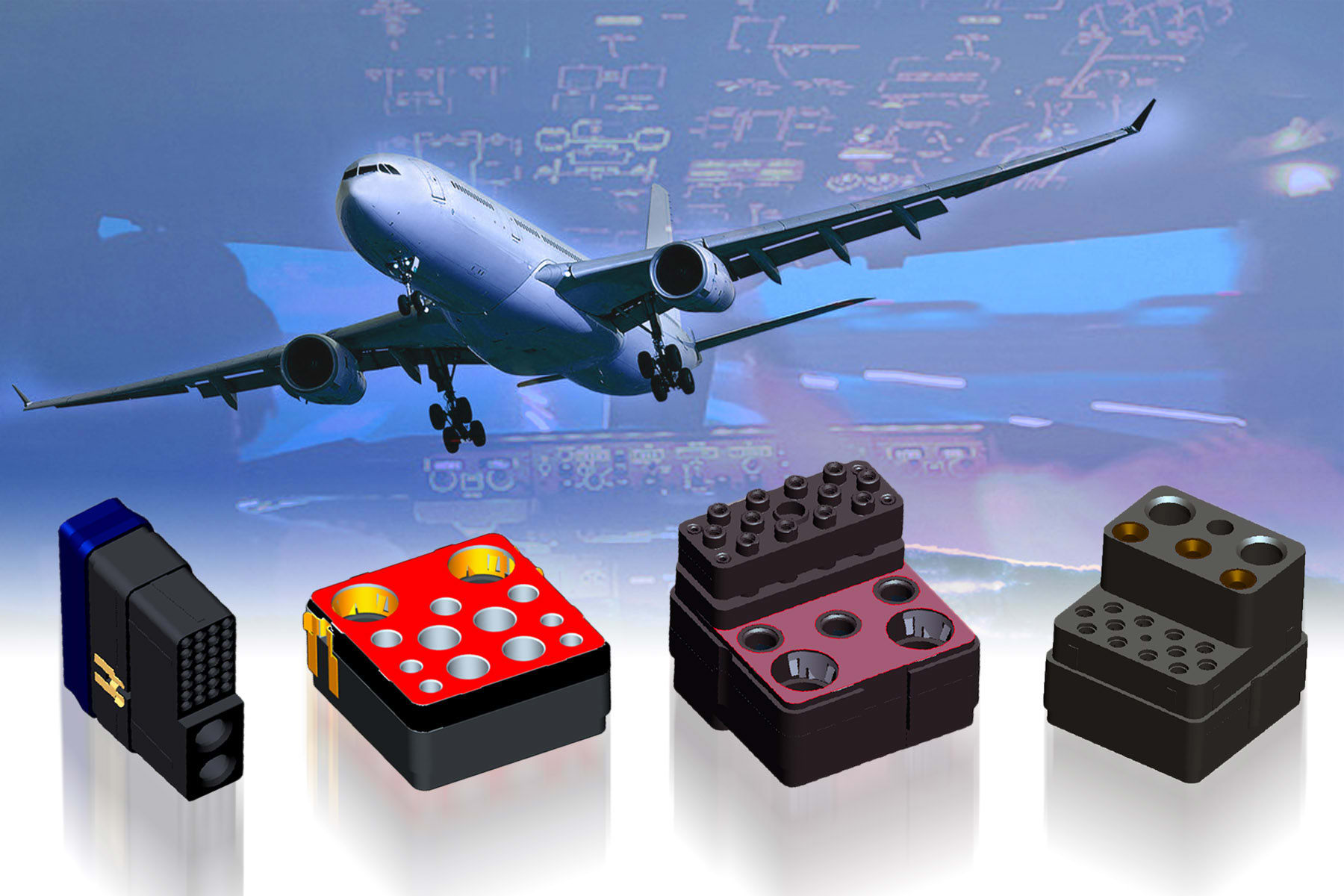

ITT Interconnect Solutions (Santa Ana, CA) has expanded its ARINC 600 Series avionic connector product line to include next-generation avionic connector inserts that combine signal, power, Ethernet and fiber optic data transmission into a single interconnect. The ARINC 600 avionic connector 30Q2 model features 28-signal contacts and 2-quadrax contacts in a single size-1 insert. The advanced connector is available in standard rear-release, rear-removable pin-and-socket versions as well as a front-release, front-removable socket option. Combining 11-power contacts and 2-quadrax contacts into a single size-2 insert, the standard ITT ICS 13Q2 insert is available in rear-release, rear-removable pin-and-socket versions as well as a front-release, front-removable pin version. The 17Q2 insert features 3-power, 2-quadrax, 12-fiber optic contacts in a single size-2 insert, plus ARINC 801 1.25mm genderless termini.
