Legacy in Action: The Enduring Role of MIL-STD-1553B

June 1, 2025

For nearly 50 years, MIL-STD-1553B has quietly powered mission-critical communications across defense and aerospace platforms. Known for its unrivaled reliability and precision, this legacy standard remains essential even as next-gen systems emerge. This article explains from an RF engineer’s perspective how MIL-STD-1553B continues to evolve, supporting today’s advanced technologies without compromising the robustness trusted by militaries and space agencies worldwide.

MIL-STD-1553B is a time-division multiplexing (TDM) data bus standard, first adopted by the U.S. Department of Defense (DoD) in the early 1970s, and initially used on the F-16 Fighting Falcon fighter jet. It soon became a de-facto standard across military aircraft, ground vehicles, and maritime vessels and has since been adopted for platforms operated by all branches of the U.S. military, NATO, and NASA. Increasingly, it’s also finding applications in commercial aerospace and industrial environments.

A Legacy of Reliability

MIL-STD-1553B remains relevant on in-service legacy military aircraft. (Image: PEI-Genesis)

Operating at 1 Mbps, the 1553B bus employs a dual-redundant architecture, ensuring data integrity and continuity even in the event of a failure. Its low-frequency transmission, below 500 MHz, and two signal paths — a primary and a backup — provide a critical layer of reliability. The standard supports up to 31 remote terminals, including flight control systems, mission computers, and weapons systems, enabling synchronized and secure data exchange.

One of the key technical advantages of MIL-STD-1553B is its deterministic communication protocol. Unlike Ether-net-based systems, where packet delivery times can vary, the 1553B standard guarantees message delivery within a defined time frame. This predictability is essential in applications where timing precision and low-latency response directly impact mission success.

Moreover, the system topology includes not only the remote terminals (RTs) but also a Bus Controller (BC), which manages communication over the bus, and a Bus Monitor (BM), which observes data traffic without interfering. These components ensure seamless operation and data integrity across the system.

The System Controller (SC) oversees the entire system, ensuring proper coordination, while the System Monitor (SM) handles performance monitoring and diagnostics. This bus architecture is typically arranged in a daisy-chain configuration, with each terminal connected through the bus, facilitating efficient communication and data flow. The fail-safe redundancy architecture minimizes the risk of single points of failure, a critical factor in high-stakes environments.

This computer-generated illustration depicts NASA’s Perseverance rover operating on the surface of Mars. Perseverance is one of several modern feats of aerospace engineering that leverages 1553B’s resilience in extreme environments. (Image: NASA)

Modern Innovations

Despite its longevity, MIL-STD-1553B has not remained static. Modern implementations incorporate enhanced physical layer components, such as advanced transformer-coupled connectors and transceivers that offer increased signal integrity and reduced electromagnetic interference (EMI).

Recent implementations include the Lockheed Martin F-35 Joint Strike Fighter, which integrates MIL-STD-1553B alongside higher-speed data protocols like IEEE 1394 and Fiber Channel. Others include the Eurofighter Typhoon fighter jet and the European Space Agency’s Ariane 5 rocket, highlighting the standard’s continued relevance in both defense and space missions. Connectors are one of the physical layer components that need EMI and other requirements that enable the embedded networking systems onboard today’s military air, land and space vehicles to operate in harsh environments.

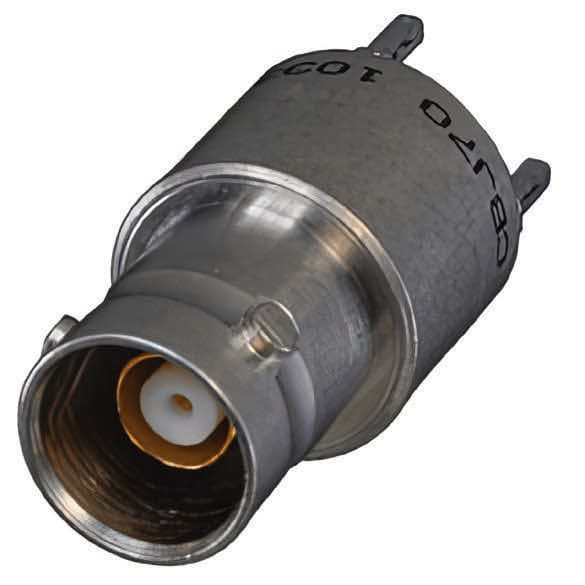

Twinax and triax connectors, like those offered by Cinch under the Trompeter brand, provide exceptional EMI protection and noise rejection through up to 90 percent shielding coverage and twisted-pair configurations. Similarly, Cinch offers a wide range of MIL-STD-1553 connectivity solutions, adapters, RFI caps, and terminators, as well as box bus couplers with 1–8 stubs and various fixed-length cable assemblies. These components are designed to meet stringent protocol requirements, ensuring low attenuation, precise impedance, and superior noise rejection—all critical for reliable data transmission in harsh environments.

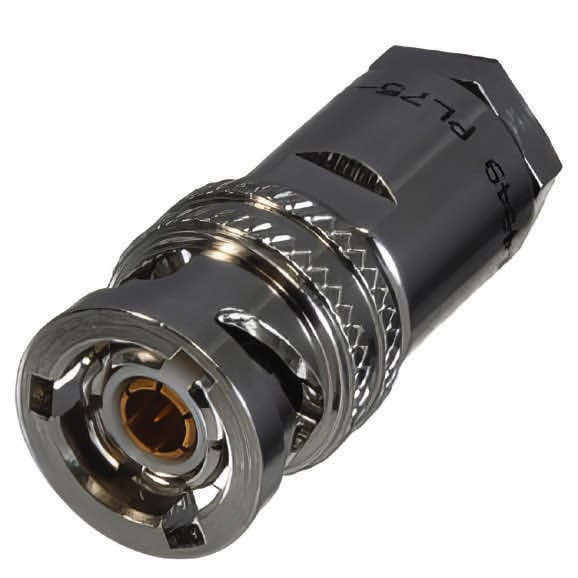

This is a different type of twinax connector provided by Cinch under the Trumpeter brand, capable of providing noise rejection through up to 90 percent shielding coverage in twisted pair configurations for 1553B systems. (Image: PEI-Genesis)

In addition to connectors, MIL-STD-1553B cable assemblies are constructed with multiple layers of electrical shielding and environmental protection to withstand extreme temperatures, moisture, and mechanical shock. This combination of rugged design and advanced materials ensures consistent performance in mission-critical applications.

Hybrid architectures, where MIL-STD-1553B operates alongside higher-speed data protocols, are increasingly common to meet the demands of modern, data-intensive defense operations. While MIL-STD-1553B remains the trusted choice for critical command and control functions due to its deterministic reliability, newer protocols, such as Fibre Channel and ARINC 664 (AFDX) are employed in parallel to handle high-bandwidth data transfer.

For example, the F-22 Raptor leverages this hybrid approach, using 1553B for essential flight and weapons control, while faster protocols manage data from advanced radar, infrared, and electronic warfare systems. Similarly, the F-35 Joint Strike Fighter uses a combination of IEEE 1394 and Fibre Channel to manage the significant data generated by its advanced sensors, enabling real-time data fusion, threat detection and target acquisition, critical for modern combat effectiveness.

Real World Applications

The new HI-1592 development kit from Holt Integrated Circuits Inc., pictured here, is easily connected to an external 1553 controller board via an industry standard PMOD port. This port connects the controller digital transmit and receive signals needed to interface the transceiver with a MIL-STD-1553 bus, according to Holt’s website. (Image: Holt Integrated Circuits, Inc.)

MIL-STD-1553B’s versatility and dependability has secured its position across various platforms. It forms the backbone of communication between flight controls, navigation systems and weapon systems in military aviation, such as the Eurofighter Typhoon. Ground vehicles, like the Bradley Fighting Vehicle, rely heavily on its robust architecture for onboard diagnostics and command functions. Space exploration missions, including NASA’s Mars Perseverance Rover, which has been on Mars searching for signs of microbial life and other indications of habitability since February 2021, leverages MIL-STD-1553B due to its resilience in extreme environments. Missile systems like the Patriot missile use this 1553B for precise targeting data downloads and mid-flight coordination, exemplifying the standard’s critical role in defense.

As defense sectors increasingly integrate AI-driven autonomous systems and advanced sensor networks, the deterministic nature of 1553B ensures precise, timely data delivery, essential in operational scenarios involving unmanned aerial vehicles (UAVs) like the MQ-9 Reaper and autonomous ground systems such as those featured on the robotic combat vehicle prototypes that the U.S. Army is currently evaluating.

The Future of MIL-STD-1553B

While newer data bus standards, such as ARINC 664 (AFDX), Fiber Channel, and Ethernet-based protocols offer higher data rates and more advanced features — including deterministic data transmission, increased bandwidth, network scalability and support for real-time data transfer — MIL-STD-1553B’s legacy of reliability and predictability ensures its ongoing relevance. Despite 1553B’s five decades of relevance, there are still new embedded computing modules and components being developed to enable the use of the standard alongside newer high speed protocols and standard.

For example, in April 2024, defense embedded computing supplier Data Device Corporation introduced its new “Total-ACE CR” MIL-STD-1553 avionics data bus interface with integrated memory, dual transceivers and transformers in a plastic BGA package. The interface layer mitigates some of the inherent cyber security weaknesses that exists within the 1553 protocol amid its operation in today’s increasingly connected aerospace and defense systems by integrating cyber resiliency at the protocol layer, independent of the host processor that the device or system is operating within. In October 2024, avionics data bus integrated circuits provider Holt Integrated Circuits introduced its radiation hardened ADK-1592, a development kit designed to help aerospace and defense systems integrators interface their HI1592 radiation hardened transceiver with MIL-STD-1553 protocol controllers or field programmable gate arrays (FPGAs), according to Holt’s website. “The HI-1592 is latch-up immune and proven to withstand a single-event upset (SEU) with an LET of at least 67.7 MeV-cm2/mg. It is radiation tolerant to a total ionizing dose (TID) of 100 krad(Si) and is ideal for launch vehicle, high-altitude aircraft and low orbit satellite applications utilizing MIL-STD-1553 data bus communication,” Holt notes in its release of the new development kit. “The device is also the World’s first rad-hard MIL-STD-1553 transceiver to feature 1.8V, 2.5V and 3.3V compatible digital I/O, giving users more flexibility to interface with a broad range of FPGAs and controllers.” These are just a few of the examples of new embedded modules and networking or interface components that continue to be developed to modernize 1553.

Modernized implementations, such as advanced bus controllers and enhanced remote terminals, further extend the standard’s capabilities, allowing it to integrate with evolving digital infrastructure. These innovations not only maintain the standard’s robustness but also open opportunities for enhanced functionality in next-generation defense systems. As a trusted partner, PEI-Genesis continues to support this evolution, providing state-of-the-art components that enhance the performance and longevity of MIL-STD-1553B systems. Our commitment to quality and customization ensures that a 50-year-old standard remains poised to support the next generation of aerospace and defense technology.

In an industry where failure is not an option, the enduring strength of MIL-STD-1553B — and the innovations keeping it relevant — serve as a powerful reminder that sometimes, the best way forward is to build on the foundations that have already proven their worth.

This article was written by Jamal Hagi, RF Engineer, PEI-Genesis (Philadelphia, PA). For more information, visit here .
