DC/DC Converter Mounting Kit

December 1, 2010

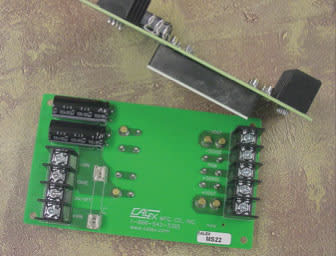

Calex Mfg. Co. (Concord, CA) has announced the availability of the Calex MS22 Mounting Kit, which provides a turn-key solution for prototyping or mounting a DC/DC converter in an enclosure. The MS22 accommodates Calex half brick DC/DC converters including the Calex 150 Watt HEW Series which offers a 9 to 36VDC input range making the units for battery powered 12 Volt systems, 24 Volt industrial, and 28 Volt military applications.

The MS22 can be obtained on a stand-alone basis or with a customer specified Calex half brick DC/DC converter mounted on the board. The MS22 includes an input fuse for protection as well as input capacitors for lower input impedance to the DC/DC converter. The MS22 also includes on-board barrier strips allowing screw terminal connections for all the converter input and output functions. The dimensions of the MS22 are 5.1"L × 3"W. The height of the board with a half brick converter mounted on it is 1.37".
