Power Supplies

October 1, 2011

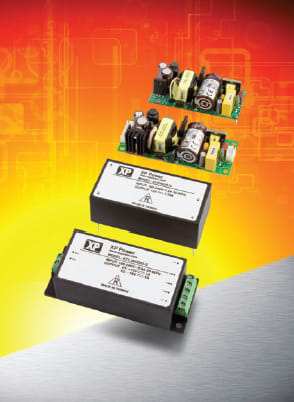

XP Power (Sunnyvale, CA) has announced two additions to its AC-DC power supplies: an encapsulated singleoutput ECE series, and multiple output models of the existing ECL product line.

The encapsulated single-output ECE series, and multiple output models of the existing ECL product line.

The ECE20 products are encapsulated, PCB-mount, 20- Watt devices, which measure 27.7mm × 52.4mm × 23.0mm. The ECE40 units have dimensions of 38.1mm × 78.7mm × 27.9mm. Both models feature up to 40-Watt output. The ECE40 devices are available in either a PCB mount version, or chassis mount package with screw terminals. The single-output ECE series provides nominal output voltages from +3.3 to + 48 VDC.

Dual- and triple-output, 15-Watt, and 30-Watt versions of the ECL line are also available. These supplies feature sizes that begin at 30.7mm × 62.0mm × 24.4mm for the 15-Watt open frame PCB mount models. The multiple-output models provide combinations of ±12, ±15, 5/12, 5/±12 and 5/±15 VDC outputs. All units across the ECE and ECL ranges include a no-load input power of less than 0.3W.
