Submersible Pressure Sensors

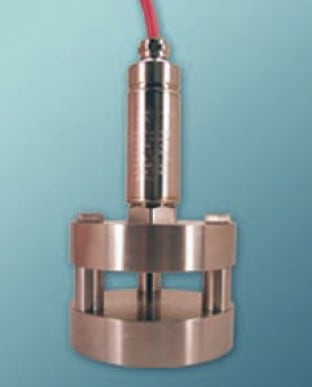

The AST4520 media-isolated, submersible pressure sensor from American Sensor Technologies (Mt. Olive, NJ) features a flush diaphragm steel cage design with stainless steel construction for level monitoring of turbulent tanks with viscous media. It is approved to UL/cUL913 Class 1, Division 1 IS, Groups C and D with an approved barrier. The steel cage design allows for proper flow of media while keeping the sensor at the bottom of the tank or well. It also features an engraved 316L housing and Kynar PVDF cable.

Units operate at temperature ranges of -40 to 185°F and offer pressure ranges from 0-5 to 0-15 PSIG. All units come standard with EMI/RFI protection of 100V/meter and a 4-20mA output.

For Free Info Click Here  .
