With funding from the US Departments of Transportation, Energy, Defense, and others, Airborne LiDAR Pipeline Inspection Sensor (ALPIS®) has evolved from a simple proof of concept model to a fully capable and successful commercial airborne pipeline inspection system. The ALPIS® system has undergone a long development period.

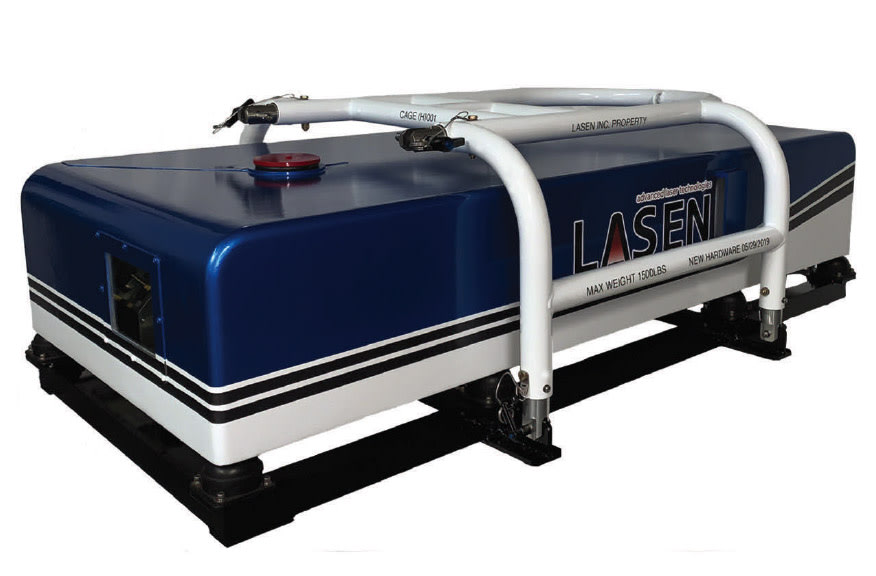

The LaSen Airborne LiDAR Pipeline Inspection Sensor (ALPIS). (Image: LaSen)

In 1989, a joint project was initiated with Phillips Petroleum to determine if a mobile truck-mounted mid-infrared (IR) laser system could be used to detect natural gas and other volatile organic compounds (VOC) in the field. One specific aspect of the project was to determine if the system could detect the presence of untapped oil and natural gas fields by sensing any VOC plumes escaping from the ground into the atmosphere.

In 1998 LaSen received funding from the U.S. Department of Transportation and U.S. Air Force to develop a tunable airborne differential absorption LiDAR sensor, “DIAL,” in the 3 – 5μm, mid-IR range. Next, in 2003, LaSen was invited to participate with the Edgewood Chemical and Biological Center (ECBC) to remotely discriminate between biological and non-biological aerosols. The sensor was very successful in detecting radiated anthrax and a variety of individual chemical species used in the bioagent fermentation process. LaSen developed two ground-based 10 Hz units and one 40 Hz helicopter-based prototype unit.

In 2004 the first airborne production prototype was assembled. The third generation ALPIS® unit was used to determine the best design, layout, and hardware to streamline and standardize the manufacture of future production units. It was also used to demonstrate the commercial capabilities of the helicopter-mounted ALPIS system and service to potential customers.

In 2005, the National Energy Technology Laboratory (NETL) invited LaSen to use its ALPIS® to evaluate airborne and ground-based detection sensors for abandoned wellheads in the gathering fields of Casper, Wyoming. ALPIS® was used in conjunction with Fugro Airborne Survey’s Midas 2 magnetometers airborne system to survey the Salt Creek oilfield near Casper, Wyoming. ALPIS was able to find several positive Methane leak indications, with leak sizes down to 4ppm at a flight altitude of 150 feet. In 2018 ALPIS was able to detect and differentiate water line leaks from fracking within ground water at the UTE Indian Reservation in Colorado.

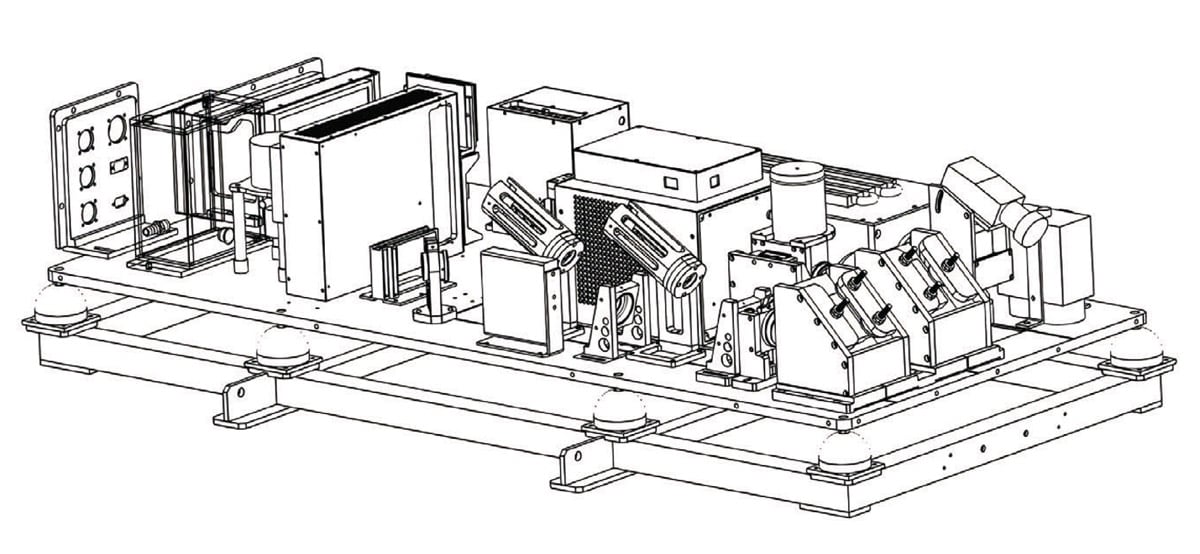

A look at the embedded architecture that enables the ALPIS system. (Image: LaSen)

Over the last 20 years LaSen’s sensor has quietly achieved many firsts and upgrades with its modular design. ALPIS® is the first mid-IR airborne laser sensor to be supplemental type certification (STC)-approved by the Federal Aviation Administration (FAA) getting its own STC number (SR00958DE). LaSen also received an FDA accession number (161029-000), certifying that the laser beam is eye-safe. A Department of Defense article published in March 2020, “A Nose for Trouble”, declared that LaSen has “the most advanced airborne aerial leak detection service on the market now serving industry, making our nation safer even as it’s helping to protect the environment.” ALPIS® routinely detects methane concentrations down to 5 parts per million-meter (ppm-m) or 5 standard cubic feet per hour (SCFH). These figures have been verified by third party blind testing at the Methane Emissions Technology Evaluation Center (METEC) at Colorado State University.

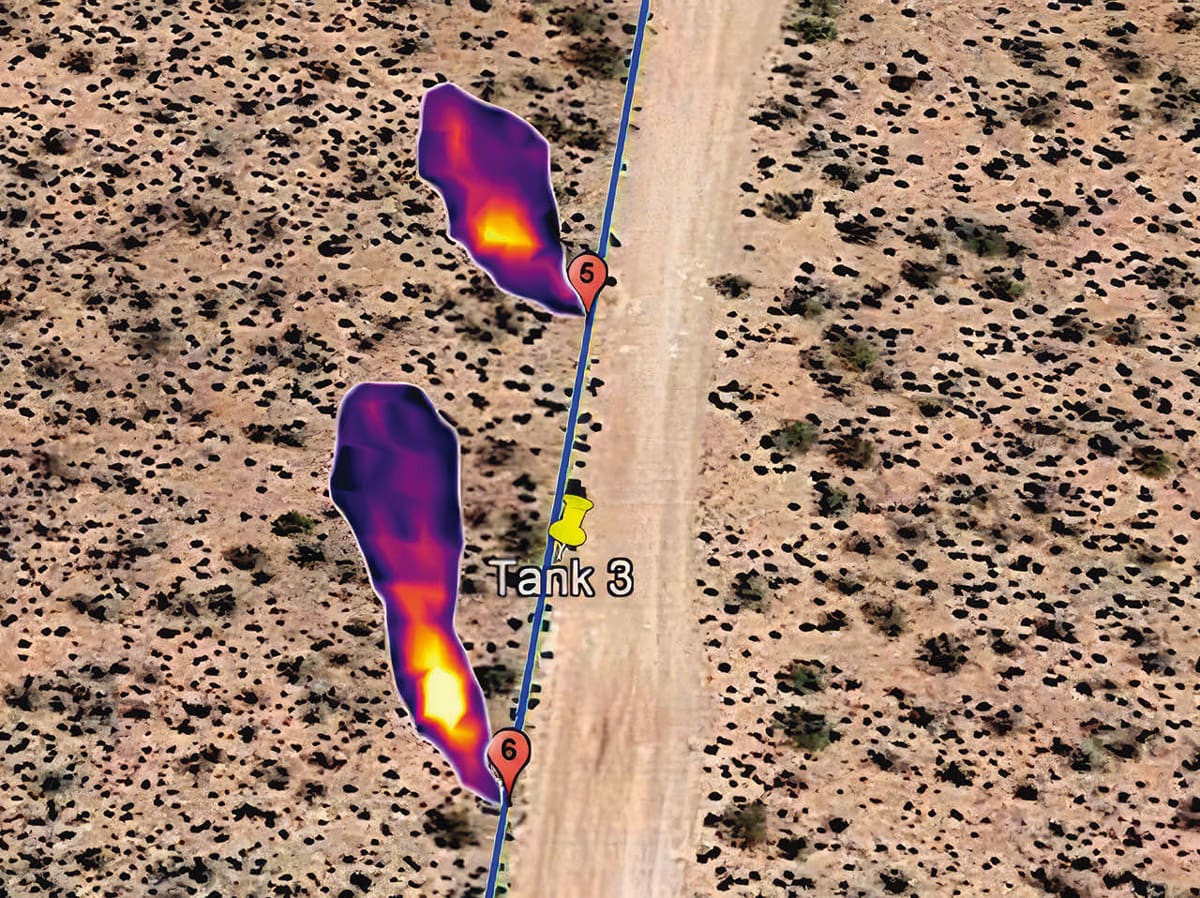

An example of how the ALPIS system can be used to pinpoint leaks from oil pipelines and other infrastructure that requires regular leak-detection inspections. (Image: LaSen)

Since its commercialization, ALPIS® has flown over 650,000 miles of pipeline, detecting over 60,000 leak indications, preventing over 60 billion cubic feet of methane from escaping into the atmosphere. In 2023 alone, LaSen expects to complete inspections of over 80,000 miles of pipeline for its energy sector customers.

The internal OPO cavity laser and tuner was developed by LaSen and is tunable from 3.1-3.5 μm. This enables the sensor to detect methane, propane, butane, pentane, and other hydrocarbons. LaSen is developing a new laser tuner that will allow the onboard system to change the chemical absorptions line during flight operation to detect multiple hydrocarbons simultaneously. The absorption lines of methane in the mid-IR are several orders of magnitude greater than the near-IR.

The greatest problem associated with sensing atmospheric methane in mid-IR is atmospheric moisture. The absorption lines from water molecules are prevalent in the mid-IR and will intensify as relative humidity increases. To solve this problem LaSen has mapped out every water line between 3.1μm-3.5 μm. By decreasing the laser line width to one nanometer it’s possible to shoot between water absorption lines and allow the sensor to detect multiple gases in the mid-IR region without water interference.

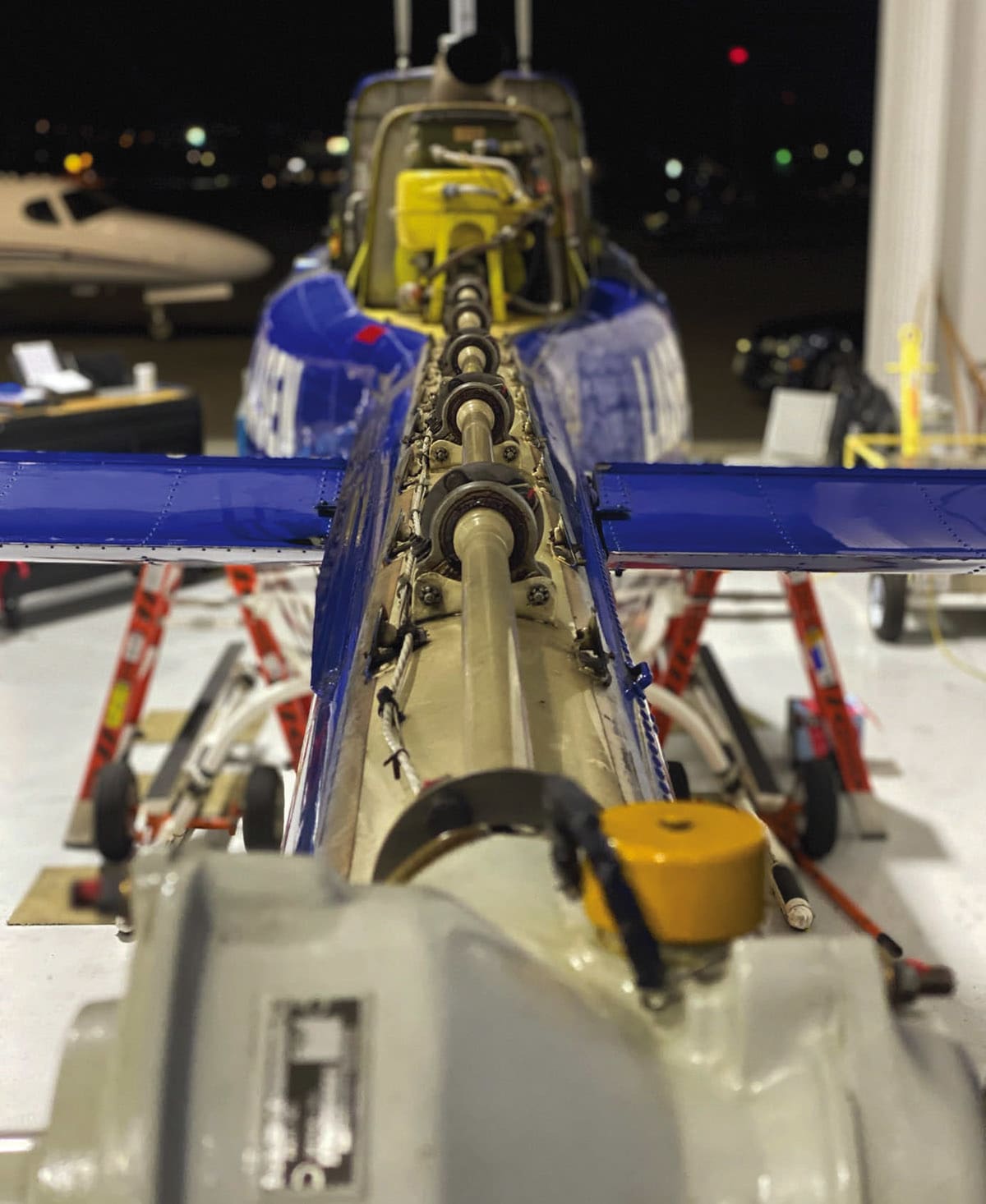

A rear view of the helicopter-mounted ALPIS system preparing for an operation. (Image: LaSen)

This wavelength range is spectroscopically significant because it features numerous absorption lines associated with chemical bonds between hydrogen and carbon/oxygen/nitrogen. Therefore, operating in the mid-IR will provide 200 times the line strength as near-IR for detecting atmospheric gases, including methane.

Other major advancements in ALPIS® includes increasing the firing from 10 MHz up to 400 MHz today. We are also currently developing a 1 KHz laser system. The greater repetition rate allows for better data resolution for 2-D plume modeling and detection abilities. Currently, data used from the ALPIS® sensor can generate a GPS location of the leak indication with quantification identification of small, medium or large.

LaSen is currently developing a new urban atmospheric measurement technology that will support the need for enhanced atmospheric measurement systems in urban environments. The Mobile Atmospheric Gas Nonintrusive Urban Mapper (MAGNUM) will have a real-time active remote mid-IR laser system that is robust, low-powered, and tamper-resistant by being housed in a light-weight modular package attached inside a surface vehicle. The MAGNUM will provide nonintrusive leak detection and precision mapping of gas leaks with significant savings on the cost per mile and time compared to the current conventional in situ and near-IR leak detection services on the market today. The beam path and resulting laser footprint will be 75 square feet or more and will be able to cover the area from the ground to the height of an average one-story structure covering 360 degrees of the surrounding area.

MAGNUM will take the present advanced technology through to the next generation. The lightweight package can be outfitted initially to ground vehicles and eventually on to an unmanned aircraft. Additionally, the data processing software will feature a new supervised artificial intelligence (AI) algorithm trained with actual MAGNUM data. This algorithm will be able to automatically identify true positives and eliminate false positives with not only high accuracy, but also speed. By switching from the Bell 206 Jet Ranger helicopters to a mobile (vehicle) platform wherever practical, and using new AI processing software, the lidar operating and data processing cost will be decreased by more than 60 percent, allowing LaSen to pass these savings on to its customers.
