New Products

Aerospace Coaxial Connectors

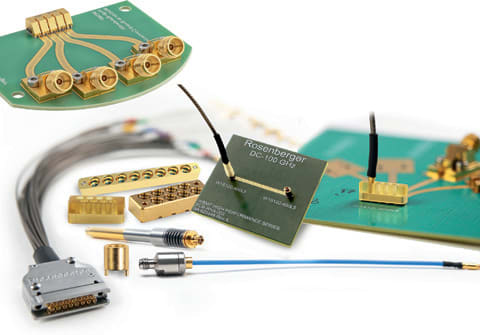

Rosenberger connectors

WSMP® standard, high-speed or new generation connectors from Rosenberger (Upper Bavaria, Germany) are approximately 45% smaller than standard SMP connectors and can be used for applications up to 100 GHz. Product features include extremely high packing densities and minimum board-to-board distances of 3.05 mm. Radial and axial misalignments can be compensated for by using bullets. WSMP® connectors from Rosenberger are certified according to DIN EN 9100 and qualified for aerospace application.

For Free Info Visit Here

Tactical Secure Server

The XSR Tactical Secure Server

Galleon Embedded Computing (Katy, TX) announced a new ground vehicle computer, the XSR Tactical Secure Server. Specifically engineered for tactical military vehicles and equipped with the latest 9th generation Intel® Xeon® E and Xeon® D processor options, the XSR-TSS offers up to 16 CPU cores and 128 Gb SDRAM with ECC. Its flexible architecture can provide the modern warfighter with advanced I/O, cutting-edge processing power, and ultra-high storage density. Housed in a SWaP-optimized design and equipped with removable storage supported by dual-layer data-at-rest encryption, the XSR Tactical Secure Server ensures consistent and secure data management.

For Free Info Visit Here

NIR Quadrant PIN

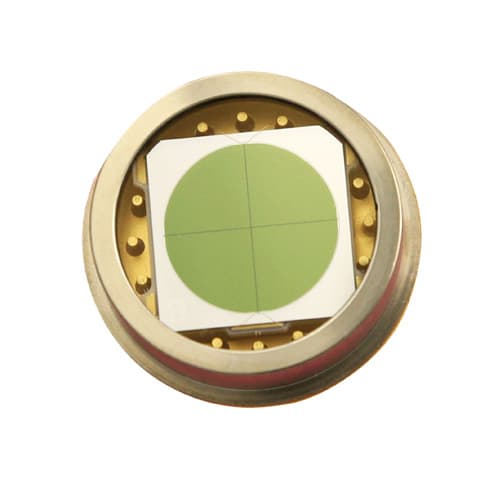

The QP154 detector

First Sensor AG (Berlin, Germany), part of TE, has developed a large area NIR quadrant PIN which could play a pivotal role in defense technologies. The QP154 detector is a quadrant PIN photodiode with a large 14 mm active area for semi-active controllers in a 100% hermetically sealed and electrically isolated transistor outline TO package. The Si detector is optimized for the NIR and specifically 1 μm wavelengths, commonly used in defense applications in the laser seeker/detector head on missiles. The circular face of the QP chip is equally divided into four quadrants, and acts as the “eye” in the detector head, ensuring that the missile can “see” the targeting laser and hit the target with a high degree of accuracy.

For Free Info Visit Here

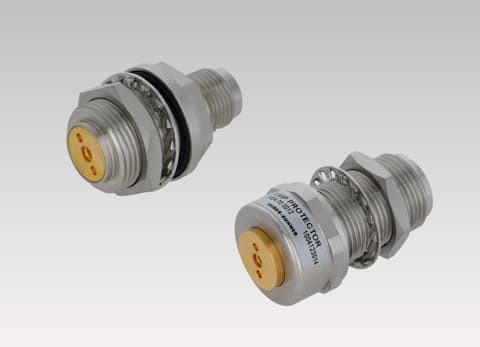

Electronic Warfare Surge Protection Devices


HUBER+SUHNER (Herisau, Switzerland) has expanded its portfolio of surge protection devices (SPD) to address the growing sophistication of electronic warfare (EW) attacks. The new 3404.00.0011 and .0012 SPDs feature a robust stainless-steel housing with an integrated coaxial gas discharge tube (GDT) and feed-through design to ensure reliable protection of critical radio equipment, including manpack and vehicle-mounted radios, against threats such as surge, ESD and NSL. These broadband SPDs cover the majority of frequency bands for software-defined radios (SDR) to ensure clear and reliable communication, while the waterproof N - MMCX or TNC – MMCX interface make them suitable for use in harsh environments (IP68).

For Free Info Visit Here

Field Test Bench

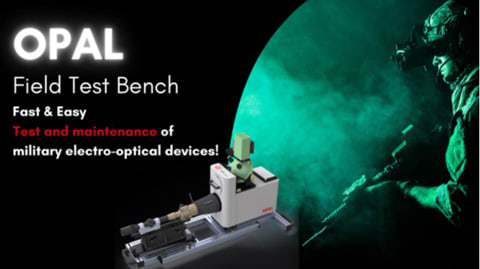

The OPAL bench

HGH Infrared Systems’ (Igny, France) new OPAL is a multispectral portable bench dedicated to the test and maintenance of military electro-optic (EO) devices such as night vision goggles, visible to IR cameras and lasers. OPAL is based on a compact collimator for field application and includes infrared and visible reference sources such as a blackbody and an integrating sphere, as well as specific targets and filters. OPAL is capable of testing: thermal & SWIR imagers (1-2.5μm/ 3-5μm/ 8-14μm); night vision goggles; TV cameras or day goggles; laser rangefinders and illuminators; multispectral portable devices; and weapon sights equipped with thermal, intensifier tubes and LRF modules.

For Free Info Visit Here

Millimeter-Wave Signal Analyzer

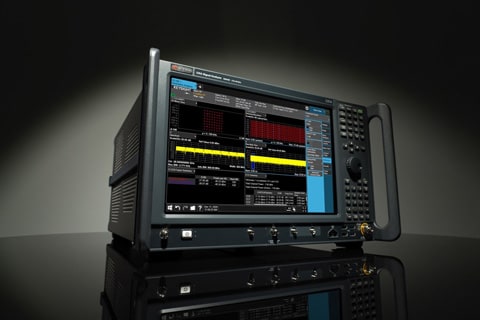

The Keysight N9042B UXA X-Series signal analyzer

Keysight Technologies, Inc. (Santa Rosa, CA) announced the Keysight N9042B UXA X-Series signal analyzer, which enables customers to test the performance of millimeter-wave (mmWave) innovations in 5G, aerospace & defense, and satellite communications. At mmWave frequencies, signals are more susceptible to impairments that affect the signal quality, such as IQ modulation errors, phase noise, distortion, signal-to-noise ratio, amplitude, and phase linearity. Keysight’s new N9042B UXA X-Series signal analyzer provides wide analysis bandwidth and deep dynamic range to help customers solve their most difficult mmWave challenges including tight design margins and timelines, complex modulation, and stringent standards.

For Free Info Visit Here

Low Noise Amplifiers

New low-noise amplifiers

Pasternack (Irvine, CA), an Infinite Electronics brand, launched a new series of low-noise amplifiers for use in electronic warfare, ECM, microwave radio, VSAT, SATCOM, radar, space systems, R&D, prototype/proof of concept, and test & measurement applications. Pasternack’s new series of input protected low-noise amplifiers feature Gallium Nitride (GaN) semiconductor technology that provides robust input power protection. These input protected amplifiers cover desirable microwave and mm-wave frequency bands that complement Pasternack’s existing portfolio of input protected LNA’s covering lower RF frequencies. Features and options include broadband frequencies ranging from 1 to 23 GHz, high gain up to 46 dB typical, low noise figures as low as 1.5 dB typical and high RF input power handling up to 10 watts CW.

For Free Info Visit Here

Network Attached Storage System

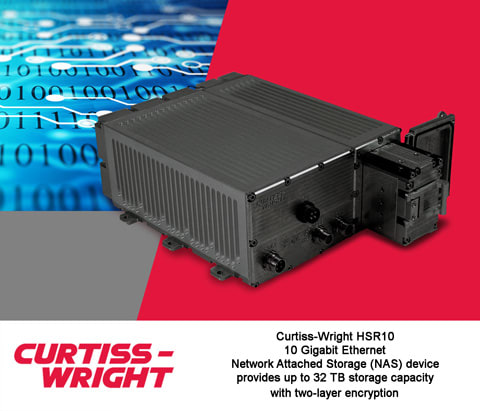

The new HSR10

Curtiss-Wright’s Defense Solutions Division (Ashburn, VA) has expanded its family of network attached storage (NAS) devices with the new HSR10, its first commercial off the shelf (COTS) 10 Gigabit Ethernet (GbE) NAS solution. The HSR10 provides dual 10 GbE interfaces and two layers of encryption to protect up to 32 Terabytes (TB) of critical data-at-rest (DAR) on deployed air, sea, and ground platforms. The HSR10’s two layers of encryption are provided via a combination of software full disk encryption (SWFDE) and hardware full disk encryption (HWFDE). The high-speed HSR10 features a PCI Express (PCIe) architecture and NVMe memory (8/16/32 TB) that connects directly to the system processor at flash memory speeds. The NVMe memory (~50% faster than SATA based memory) is housed in a rugged Removable Memory Module (RMM) that eases the secure transfer of data for post-mission analysis.

For Free Info Visit Here

Ruggedized I/O System

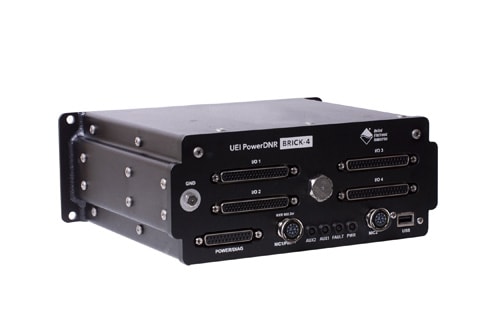

The UEIPAC BRICK4 I/O system

United Electronic Industries (UEI) (Norwood, MA) released a new rugged, flexible, and compact UEIPAC BRICK4 I/O system for applications exposed to extreme environments. The UEIPAC BRICK4 offers slots for four I/O boards, and with over 85 unique UEI I/O boards, there is sure to be a configuration matching your application. Sealed dSUB I/O connectors ensure pinout compatibility with all of UEI’s popular DNx-series I/O boards. Ethernet connections are made through standard M12 connectors, ensuring compatibility with industry standard cables. The DNR-BRICK4 may be powered via standard 4 pair PoE++ (802.3bt) compatible Ethernet ports. Redundant power sources may be used via the 25-pin dSub connector, and the primary source is programmable. For non-POE applications, the chassis requires 9-36 VDC. An optional AC/DC power supply is available (DNA-PSU-60).

For Free Info Visit Here

Detect and Avoid System

The technology supports use on commercial unmanned aircraft as well as urban air mobility (UAM) platforms.

Sagetech Avionics (White Salmon, WA) and American Aerospace ISR (AA ISR) (Conshohocken, PA) have signed a Memorandum of Understanding (MOU) to integrate Sagetech’s Detect and Avoid (DAA) system into the AA ISR AiRanger unmanned aircraft. Sagetech’s DAA system packages multiple core technologies into a single, low size, weight, and power (SWaP) DAA solution suitable for use on commercial unmanned aircraft as well as urban air mobility (UAM) platforms. Sagetech’s DAA system is ACAS-based, featuring technologies including a transponder, an interrogator, an ACAS-based DAA computer, software package, and other essential components. The AiRanger™ is an industry-leading fixed-wing unmanned aircraft with an endurance of over 17 hours (with payload). Powered by a fuel-injected gasoline engine, the AiRanger is designed for commercialized airborne applications in austere environments at large scale.

For Free Info Visit Here

Ultra-SFF Supercomputer

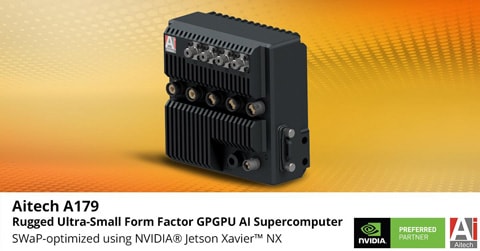

The A179 Lightning

Aitech (Chatsworth, CA) has expanded its GPGPU-based product offerings with the A179 Lightning, a rugged, fanless AI supercomputer. With an ultra-compact footprint, roughly the size of a cell phone, the new SWaP-optimized A179 is powered by the NVIDIA Jetson Xavier NX platform based on the Volta GPU, which packs up to 384 CUDA cores and 48 Tensor cores. In addition to the 21 TOPS (Tera Operations Per Second, INT8) that the A179 Lightning provides, it offers 1050 GOPS/W INT8, as well as an H.264/H.265 hardware encoder/decoder. Video capture inputs include SDI (SD/HD), four FPD-Link™ III (to MIPI CSI) camera inputs and eight composite (NTSC/PAL) channels. Standard I/O ports, such as Gigabit Ethernet, USB 3.0 & 2.0, DVI/HDMI out, CAN-bus, UART Serial and a number for discretes, offer flexible data management.

For Free Info Visit Here

Plastic mmWave System

The system guides mmWave radio signals through plastic tubing.

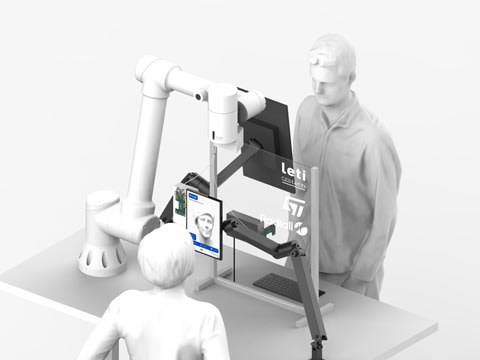

CEA-Leti (Grenoble, France) has developed a hybrid, ultra-fast, ultra-low latency technology that guides mmWave radio signals through flexible plastic tubing. Called H-Link, the low-cost, energy-saving system ensures Gb/s broadband connectivity that also overcomes the limits of copper wire and optical fiber, such as oxidation of metal and brittleness. In addition to being flexible and less sensitive to vibration and electromagnetism, H-Link’s wireless technology can transfer information over distances up to 10 meters at a speed of 15 Gb/s, with an average data transmission speed of 6 Gb/s over a little more than two meters. mmWave systems operate in frequency ranges from 30 to 300 GHz. The plastic-based system, which is much lighter than copper, uses one-tenth of the energy of copper and less than fiber-optic cable.

For Free Info Visit Here

CNC Machine


With SINUMERIK ONE, the first digital native CNC, Siemens (Munich, Germany) is driving forward digital transformation in the machine tool industry. The new controller works with software to create the machine controller and the associated digital twin from one engineering system and thus contributes to the seamless integration of hardware and software. The CNC system with integrated Simatic S7-1500F PLC is available in both a control cabinet-based and panel-based version. SINUMERIK ONE fits into the Totally Integrated Automation (TIA) Portal and makes an efficient engineering framework available for machine tool builders. With IT security integrated in the CNC by design, SINUMERIK ONE implements the multi-layer Defense-in-Depth-Concept.

For Free Info Visit Here

GaN-Based Solid-State Power Amplifier

The SSPA designs offer 630-Watts of pulse power output in a compact package.

CTT, Inc. (San Jose, CA) announced a new compact, GaN-based solid-state power amplifier (SSPA) specifically designed for multifunctional Low Earth Orbit (LEO) Small Satellite (SmallSat) and airborne Synthetic Aperture Radar (SAR) systems. CTT’s latest compact SSPA designs offer 630-Watts of pulse power output in a compact package. Model AGN/099-5860-P operates in the frequency of 9.4 to 9.9 GHz with a pulse power output of 630 Watts; small signal gain is 60 dB, min.; and noise figure is +10 dB making this an attractive solution where supply power is limited. The amplifier’s compact design measures just 6.17-inches (L) × 6.35-inches (W) × 0.82-inches (H) and weighs less than 2 pounds. Higher power output is also available.
