Using Dempster-Shafer Fusion for Personnel Intrusion Detection

New technique enables the use of ultrasonic micro-doppler and PIR sensors for improved security.

The Dempster-Shafer (D-S) mass function is used in effect as a common representation of heterogeneous sensor data. In order to cast each data source in this form, first the raw data is reduced to points in a multi-dimensional feature space specific to each sensor. From there, an approach is outlined that uses a distance metric in the feature space to assign mass to each state in the class hierarchy. This hierarchy begins with the full frame of discernment which represents complete uncertainty. From there it proceeds as an n-array tree broken down into further subclasses until the finest granularity of classification for the specific sensor is reached.

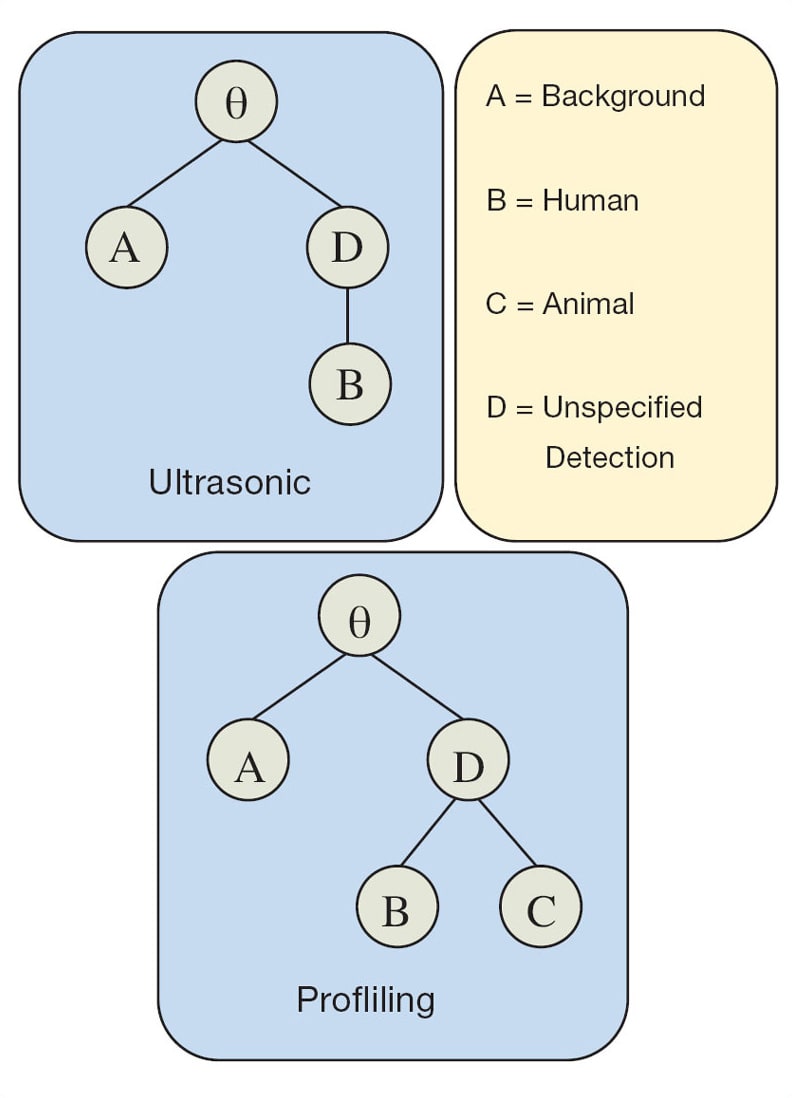

Heirchy of classes in ultrasonic and profiling data.

For an input point to be classified, mass is assigned iteratively down the tree. In doing so, two key steps are taken. First, the uncertainty is estimated as a function of the ratio of the distance between the two closest child nodes. If the input point is deemed equidistant from the child nodes, there is a great deal of uncertainty and the mass function should reflect that. On the other hand, significant disparity indicates a much greater likelihood of one subclass. This distinction leads to the second step, where any mass not assigned to uncertainty is split between the child nodes as a function of the ratio of their distances.

The final result is a representation of the likelihood of each singleton class, as well as all unions of these classes representing uncertain states. These D-S mass functions can now be fused using Dempster's rule of combination, and classification rules can be derived to provide a more robust singular solution.

The preceding approach is derived with simulated data, and subsequently demonstrated on two sensor modalities: an ultrasonic micro-Doppler sensor and a PIR profiling sensor. The ultrasonic sensor is able to extract human motion by identifying the periodicity of a human walker's gait in the sensor field of view. The sensor can distinguish between a human, an unknown object in the scene, and background ambience. On the other hand, the profiling sensor is capable of distinguishing a horse from a human. The sensor forms a 2-D image of height versus time, and from this the orientation and eccentricity of the object are estimated and matched to known distributions of human and horse profiles. These two sensors illustrate the approach on differing hierarchies of class representations.

The Dempster-Shafer theory provides the capability of fusing orthogonal data from an ultrasonic micro-Doppler and PIR sensors. Utilizing two sets of real-world data from these sensors that were collected separately, it is possible to take a hierarchal approach to classification/discrimination through fusion of the disparate information resulting in a series of solutions with a greater confidence in comparison to a standalone sensor solution. The utilization of multiple classes afforded by the Dempster-Shafer theory increases the robustness and quality of the information from the given suite of sensors.

This work was done by Brian McGuire and Sachi Desai of the US Army RDECOM-ARDEC. ARL-0189

Topics:
Aerospace Defense Detectors Kinematics Motion Detectors Sensors Sensors and actuators
This Brief includes a Technical Support Package (TSP).

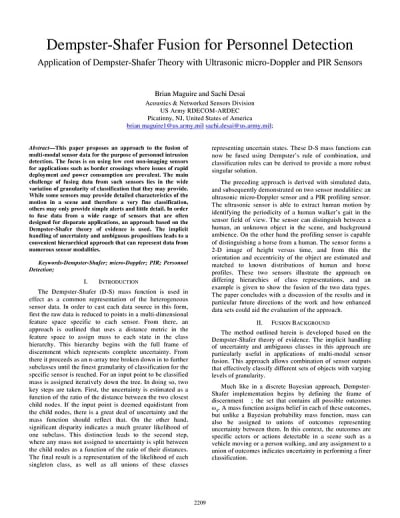

Document cover
Dempster-Shafer Fusion for Personnel Detection

(reference ARL-0189) is currently available for download from the TSP library.

Don't have an account?

More From SAE Media Group

    Magazine cover
    Aerospace & Defense Technology Magazine

    This article first appeared in the April, 2017 issue of Aerospace & Defense Technology Magazine (Vol. 2 No. 2).

    Read more articles from this issue here.

    Read more articles from the archives here.

    Overview

    The document presents a study on the fusion of multi-modal sensor data for personnel intrusion detection, utilizing the Dempster-Shafer theory of evidence. The primary focus is on low-cost, non-imaging sensors, specifically an ultrasonic micro-Doppler sensor and a PIR (Passive Infrared) profiling sensor, which are suitable for applications like border crossings where rapid deployment and low power consumption are critical.

    The research highlights the challenges associated with fusing data from sensors that provide varying levels of classification granularity. Some sensors can deliver detailed motion characteristics, enabling fine classifications, while others may only offer basic alerts with minimal detail. To address this disparity, the Dempster-Shafer theory is employed, which effectively manages uncertainty and ambiguous propositions, allowing for a hierarchical approach to data representation.

    The ultrasonic micro-Doppler sensor detects human motion by analyzing the periodicity of a person's gait within its field of view. It can differentiate between humans, unknown objects, and background noise. In contrast, the PIR profiling sensor generates a two-dimensional image based on height and time, enabling it to distinguish between different types of objects, such as humans and horses, by estimating their orientation and eccentricity.

    The document details the process of fusing data from these two sensors, demonstrating how the Dempster-Shafer theory can enhance classification accuracy and confidence compared to using a single sensor. The fusion of data results in a more robust solution, capable of handling multiple classes and varying confidence levels for different scenarios.

    The findings indicate that the application of the Dempster-Shafer theory significantly improves the quality and reliability of information derived from the sensor suite. The paper concludes with a discussion on future directions for this research, emphasizing the potential benefits of enhanced data sets for evaluating the proposed approach.

    Overall, this study contributes to the field of multi-sensor data fusion by providing a systematic method for integrating diverse sensor outputs, thereby improving personnel detection capabilities in various operational contexts. The research underscores the importance of addressing uncertainty in sensor data to achieve more accurate and reliable classification outcomes.
