Rugged Data Recorders

August 1, 2016

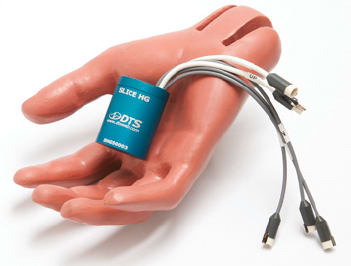

DTS (Seal Beach, CA) has released SLICE HG, a new standalone 3-channel system; 31.75 mm in diameter × 42.52 mm; 20,000 g shock-rated; programmable bandwidth DC to 40 KHz; with adjustable sampling 10 to 500,000 sps/ch. Data direct-writes to 16 GB flash memory, which can store >4 hours at the max sampling rate. The small potted aluminum enclosure is designed to be embedded in the test article, which also helps improve data quality. Sensor support includes: bridge, MEMS, strain, IEPE, load and temperature sensors.

SLICE HG can also be configured with a high-g embedded DTS ARS (Angular Rate Sensor) or triaxial accelerometer. SLICE HG applications include gun launch, fuze validation, blast testing, missile/ordnance research and parachute deployment.
