Modular Backplane System

June 14, 2013

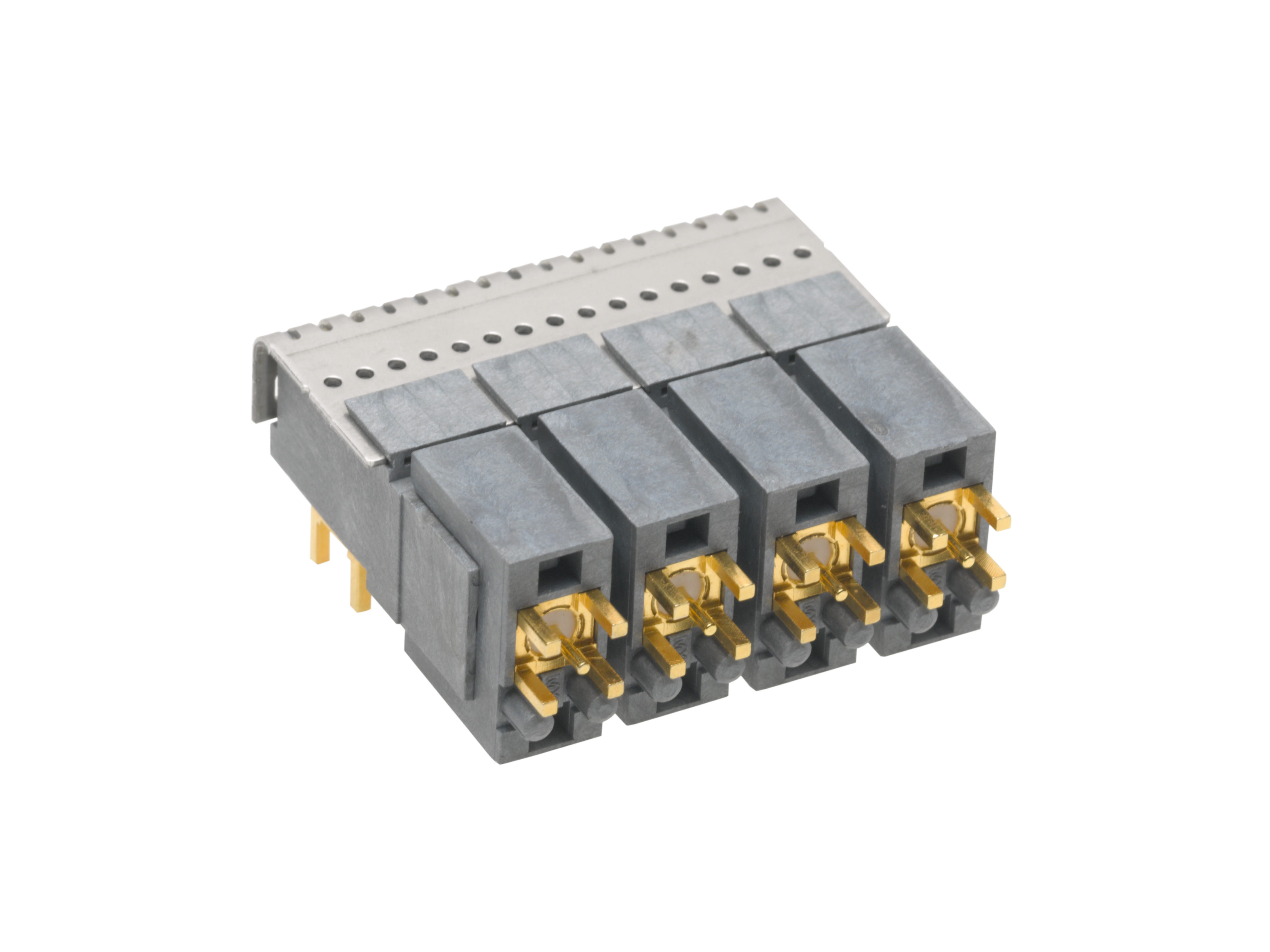

Molex Incorporated (Lisle, IL) has announced a high-performance connector system designed specifically to enable PCB developers in the video, commercial broadcast and telecommunications industries to transfer multiple RF signals across mated boards in a single assembly while taking into consideration space constraints. The RF DIN 1.0/2.3 Modular Backplane System features a unique bracket housing design, which enables an expansion capability of up to 10 ports for increased orthogonal PCB mating flexibility. The modular board-to-board system offers multiple options including a standard four port, 75 Ohm contact version or customizable six, eight and 10 ports with 50 Ohm contacts. The DIN 1.0/2.3 interface allows up to 1.00 mm of axial engagement tolerance.
