Submersible Level Sensors

October 1, 2008

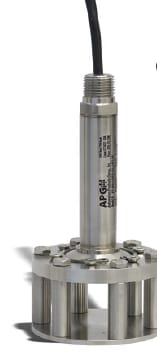

PT-500 submersible liquid level/pressure transmitters from Automation Products Group (Logan, UT) are cCSAus certified for use in Class I, Div. 1, Groups C and D, and Class I, Zone 0, Group IIB hazardous locations. They feature a vented, watertight cable and deliver a 4-20mA solid-state signal while submerged to 450 feet. A removable stainless steel cage connects to the sensor with a snap ring.

The IP68-protected transmitters are temperature-compensated for use under extreme temperature variations. Surface-mount technology provides additional protection from shock and vibration.
