Walk-In Oven

January 20, 2015

Linda Trego

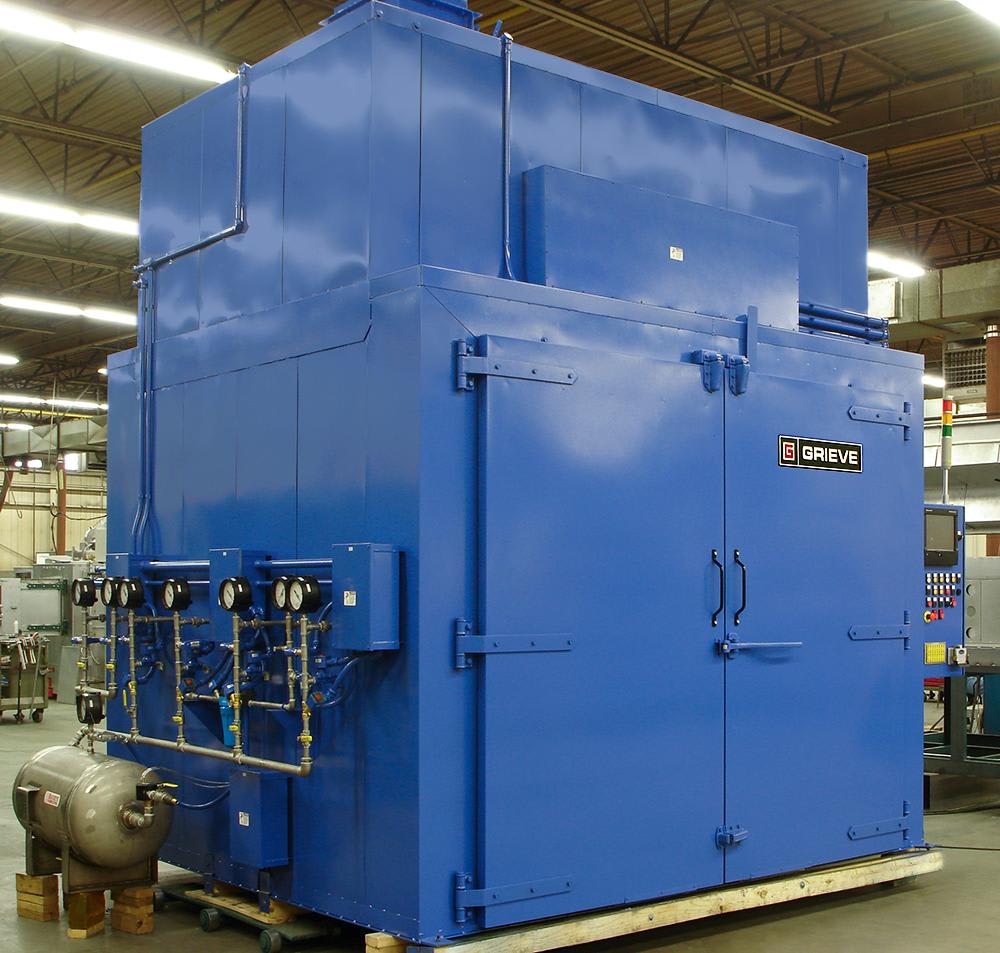

The No. 1031 is a 650°F electrically heated walk-in oven from Grieve, currently used at a customer location for curing composite components. Workspace dimensions of the oven are 96-in width x 96-in depth x 84-in height. The oven chamber is heated via 140 kW installed in Incoloy-sheathed tubular elements, while a 10,000 ft³/min, 7-1/2 hp recirculating blower provides a combination airflow to the workload. Safety equipment is onboard to handle flammable solvents, including explosion-venting door hardware, and a 4400 ft³/min powered forced exhauster. Motorized dampers are provided for accelerated cooling. Controls include a digital programming temperature controller; manual reset excess temperature controller with separate contactors; 32-point digital recorder to track temperature, vacuum, and pressure; recirculating blower airflow safety switch; and SCR power controller.
