Ballistic Helmets

April 1, 2019

3M
St. Paul, MN
888-364-3577
www.3M.com/Defense

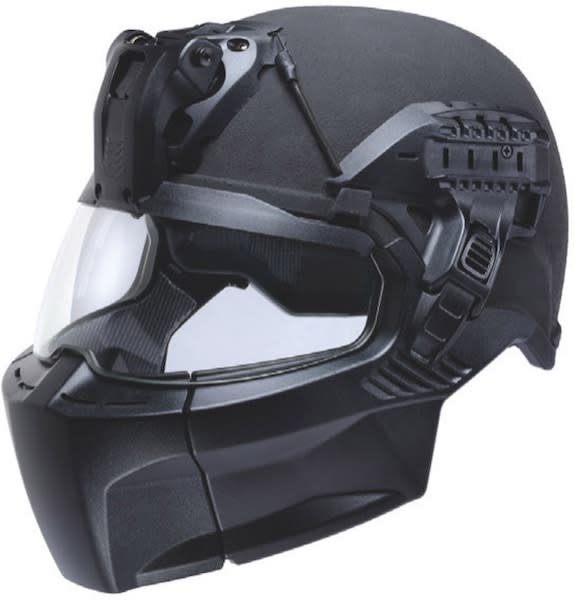

Military and police forces across the world require cutting-edge protection to match an ever-evolving range of operational environments. Ceradyne, Inc., a 3M company, designed the new 3M Ballistic Helmet F70 that combines a high level of protection with low weight for maximum flexibility in military combat missions, special forces operations and law enforcement tactical operations.

The 3M Ballistic Helmet F70 provides a unique combination of ballistic performance, low weight, modular system design and optimized geometry, which is important in combat and tactical situations. The helmet comes in both high-cut and mid-cut (full coverage) versions and offers an optional ballistic mandible and ballistic visor. The helmet geometry is engineered for improved coverage of critical areas, as well as increased stability and comfort.

Unlike conventional helmet designs, the no thru-hole design eliminates weak spots in the ballistic shell by removing thru-holes for the night vision device shroud, retention system and rails. With this state-of-the-art design, bolts can no longer become secondary projectiles during a ballistic event.

The 3M Ballistic Helmet F70 meets or exceeds all commonly specified Advanced Combat Helmet (ACH) requirements for ballistic fragmentation and bump protection and meets NIJ IIIA ballistic penetration protection standards. It provides V50 fragmentation protection against 17 grain (.22 caliber) FSP at greater than 2,750 feet per second (greater than 840 meters per second) when tested in accordance with NATO STANAG 2920. The ballistic shell weight is 1.68 pounds (770 grams) in the high-cut version and 1.91 pounds (870 grams) in the mid-cut version.

The Air Force Test Parachute Program (TPP) also conducted an evaluation of the 3M Ballistic Helmet F70 and determined it to be suitable for Air Force static line and military free fall operations.

Each F70 helmet comes with reverse dovetail rails that accept common industry accessories. Optional accessories designed for the helmet include ballistic mandibles, visors, helmet covers, over ear ballistic protection (high-cut) and counterweights. In addition, the helmet works seamlessly with 3M PELTOR communications and hearing protection solutions.
