GPS Protector

October 1, 2012

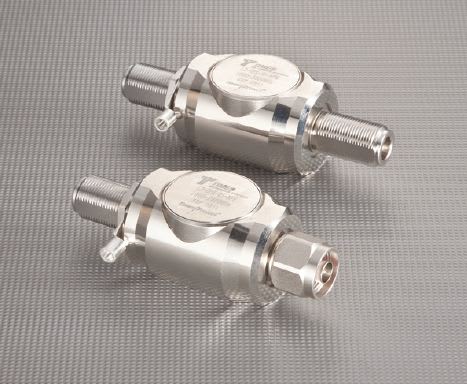

Times Microwave (Wallingford, CT) offers the Times-Protect® LPGPX- 05-T high-performance lightning protector for RF communications networks. The DC pass design enables protection of GPS receivers requiring up to 5Vdc power to be supplied on the center pin for L1, L2, and L3 bands. While the RF path is DC blocked, the biased DC voltage protection circuit uses solid-state protection technology to provide surge performance. The bidirectional filter-based design exhibits return loss characteristics from 1000 to 2000 MHz. The white bronzeplated construction eliminates potential galvanic corrosion issues and provides long life in hostile environments. The weatherized housing is rated to IP65, allowing for outdoor installations.
