Radio Amplifier

October 1, 2012

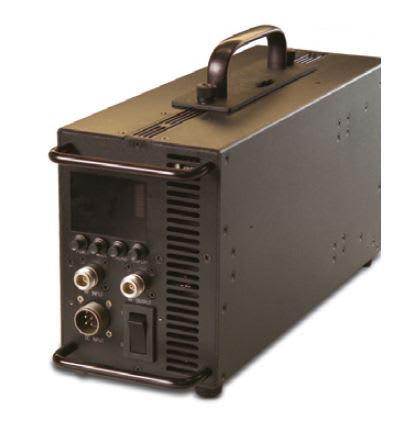

AR Modular RF (Bothell, WA) has received JITC certification for its KMW2030 tactical radio amplifier system when used with the Harris PRC-117G tactical radio. It has been previously certified for use with the PRC 117F and the PSC-5D. The AM/FMUHF/ VHF DAMA amplifier for signals in the 30- to 512-MHz frequency range features an optional external low-noise pre-amplifier for use in the UHF SatCom mode. Operation requires only MODE and POWER LEVEL selection. The amplifier provides transmit power on the UHF SatCom, UHF Line-of-Sight, and VHF LOS bands.

The amplifier is protected against antenna mismatch, over-temperature, excessive current draw, high VSWR, and DC power mismatch. LED indicators show output power, VSWR, temperature, and input drive fault conditions. External connections are limited to RF input; RF output, DC power, and RS-232 control lines. The amplifier is selfcontained, splash-proof, and designed for military ground, vehicular, and aircraft tactical operations.
