High-Temp Cable Assembly

December 1, 2011

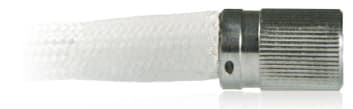

Meggitt Sensing Systems (San Juan Capistrano, CA) has introduced the Endevco® model 3075M6-XXX hardline cable assembly, offering performance up to +482 °C (+900 °F). Offered with a hermetically sealed design for resistance to corrosion, humidity, and other harsh environmental conditions, the 3075M6-XXX is constructed with a fiberglass jacket over a 304L stainless steel outer sheath, preventing inadvertent signal grounding.

Both cable assembly ends terminate into glass-fired 10-32 UNF connectors. An optional 10-32 to 10-32 inline adaptor, sold separately as the Endevco® model 33268, conjoins two model 3075M6- XXX assemblies into a single operating unit. The cable assembly is compatible with high-temperature single-ended piezoelectric accelerometers.
