Quad-Core Computer-on-Module

October 1, 2012

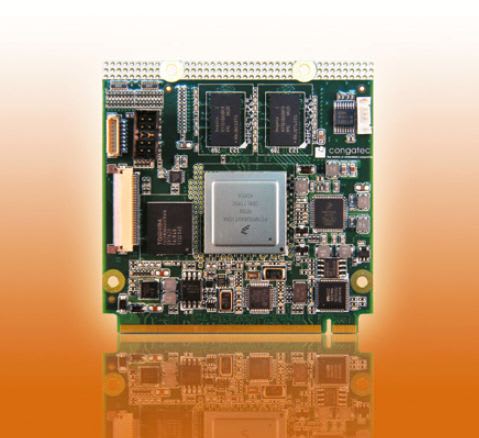

The conga-QMX6 Qseven Computer-on-Module from congatec (San Diego, CA) is equipped with the Freescale i.MX6 ARM Cortex A9 processor. The processor product line, scalable from 1 to 4 ARM cores, features a 3D-ready HD graphics interface. The Qseven module will be available in 4 processor versions, from Freescale’s i.MX6 Solo ARM Cortex A9 (1.0GHz, 512KB cache) up to the Freescale i.MX6 Quad ARM Cortex A9 (1.2GHz, 1MB cache).

The integrated graphics core is designed for multimedia applications with a video processor unit (VPU), 2D and 3D graphics (GPU2D/3D), four shaders with up to 200 MT/s (million triangles/ second), and a dual stream of 1080p/720p. A dual HDMI v1.4 graphics interface is available, with the second HDMI port being shared with LVDS. LVDS also supports 18/24 bit dual channel, with a resolution of up to 1920x1200 pixels (WUXGA).

A MicroSD socket can be used for mass storage. Differential interface options include 1x PCI Express 2.0, 2x SATA 2.0, 6x USB 2.0, Gigabit Ethernet, 1x SDIO, CAN bus, LPC, and I2S sound. The conga-QMX6 module is equipped with the universal boot loader (uBoot).
