Vector Network Analyzers

October 1, 2015

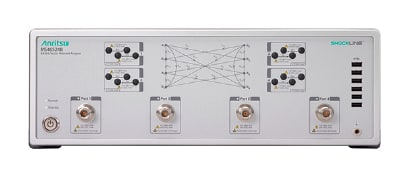

Anritsu Company (Morgan Hill, CA) has expanded its Shock-Line™ family of vector network analyzers (VNAs) with the introduction of the Performance ShockLine MS46500B series. The MS46500B series is comprised of the 2-port MS46522B and 4-port MS46524B models, and expands the ShockLine family to a broader spectrum of RF test applications. Each instrument features an independent source per VNA port, and all the sources can sweep at the same time for measurement of forward and reverse s-parameters simultaneously. This unique Simultaneous Sweep feature allows 2-port measurements to be conducted twice as fast and 4-port measurements 4x as fast.

The MS46500B series is housed in a 3U high chassis to fit in conventional rack systems and the VNAs short depth allows more bench space for cabling and the DUT. The MS46500B VNAs use industry standard LAN communications for robust remote control in production test environments.
