Vortex Research to Solve Aviation’s Efficiency Tradeoff with Active Strakes

April 1, 2026

University of Washington Department of Aeronautics & Astronautics (A&A), Seattle, WA

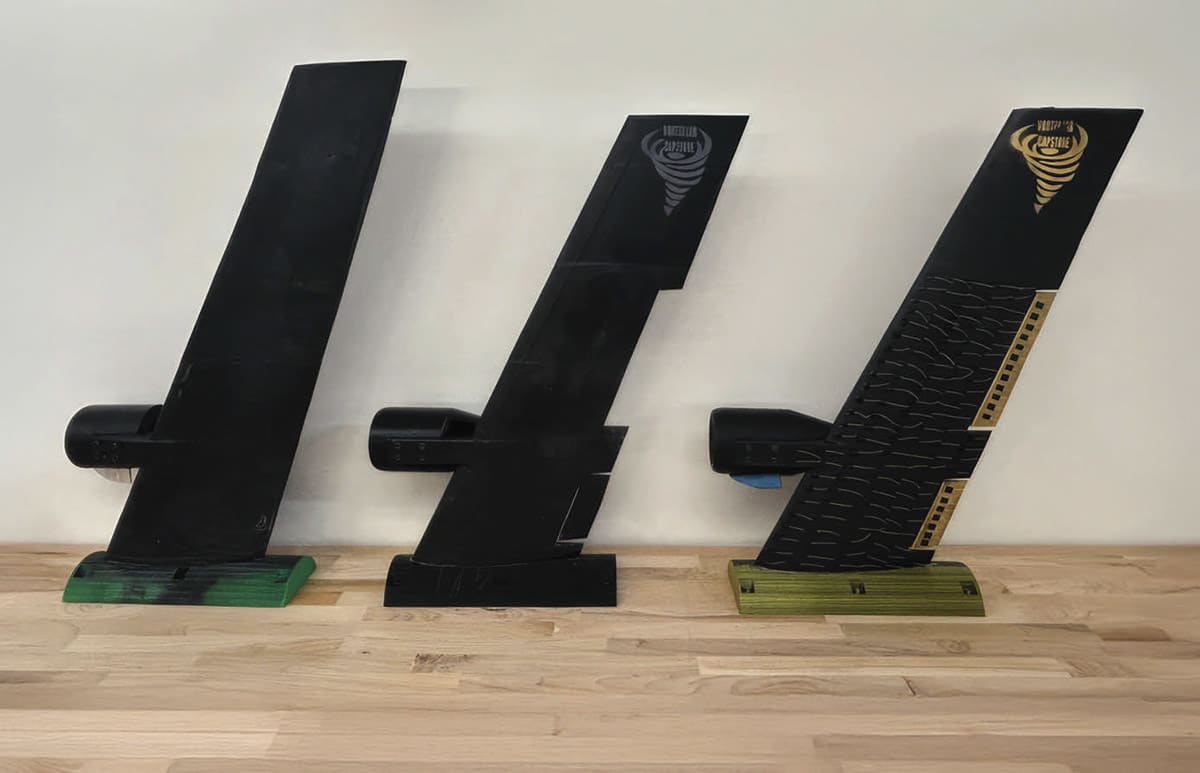

Three model iterations: Each iteration incorporated lessons learned, culminating in a sophisticated model (right) with CNC-milled aluminum strake, 3D-printed body sections, carbon steel spars, and a fiberglass-epoxy composite skin. (Image: University of Washington)

For decades, aircraft have carried a fundamental compromise between their engines and wing flow interactions by using strakes. These are small fins attached at the sides of engine nacelles that generate helpful vortices during takeoff and landing that boost lift and avoid stall, but create unwanted drag during cruise flight. Now, seven William E. Boeing Department of Aeronautics & Astronautics (A&A) undergraduates have advanced a solution that improves this trade-off, achieving up to 33 percent drag reduction, on the limited tested conditions, during cruise while maintaining critical safety benefits at high angles of attack.

The team — Hugh Carbrey, Cade Homfeldt, Alexander Maldonado, Matthew Saludares, Paul Snyder, Fiona Spitzley, and Aaron Wu — worked under the mentorship of Giovanni Nino, an Affiliate Associate Professor with over 50 patents, Professor Robert Breidenthal of A&A’s Vortex Transport Lab, and Professor Alvar Saenz Otero, lead of our capstone design program. They validated the concept of an “active strake” that uses controlled air injection to dynamically adjust vortex flow based on the angle of attack to reduce drag during cruise flight.

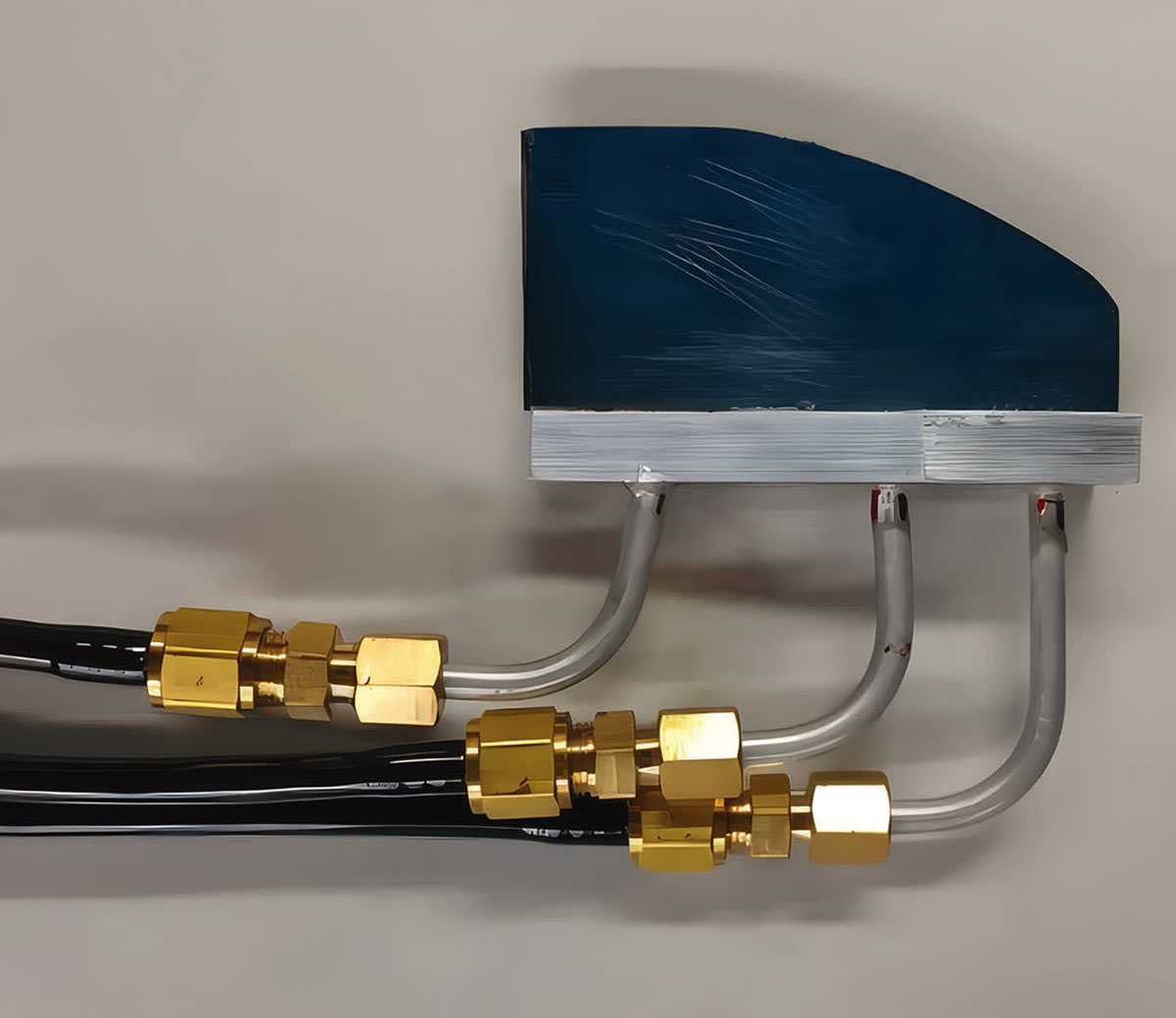

A close-up of the aluminum strake with three precisely positioned injection ports that deliver air and change the vortex over the wing for a more efficient cruise stage of a flight. (Image: University of Washington)

Building on the lab’s previous smallscale research in vortex control by master’s students Tobias Wittig and Lucas Weber, the capstone team scaled the concept to a half-wing model with an engine nacelle and strake. “The previous research proved concept viability on just a strake,” said Fiona Spitzley, now an A&A master’s student, who handled systems engineering for the team. “We went a step farther by attaching it to a model that was representative of an actual airplane.”

From Paper Concept to Wind Tunnel

The project began with “Iteration Zero” — a paper model assembled at the University Village Starbucks on a Friday afternoon. “We had pieces of paper, and we just cut out the first size of our elements,” said Spitzley. “We looked at that and said, ‘Whoa, that’s really big.’ So we knew to scale down the next version.”

That paper model, launched an intensive development process that produced three iterative models for the wind tunnel. Each version refined the design — smoothing the nacelle, thinning the pylon, and eventually adding channels to keep air hoses flush with the wing surface. Spitzley managed much of the 3D printing in Maple Hall’s Dabble Lab, where printer bed size constraints meant dividing the wing into sections that were later assembled with fiberglass reinforcement.

“This project demonstrates the power of combining rapid prototyping with rigorous testing,” said Nino. “In just one academic quarter, these students went from paper mockup to wind tunnel validation, producing results that challenge decades of accepted aircraft design.”

The smart strake translates directly to fuel savings and a reduction in carbon emissions. A 10 percent reduction in drag typically yields a 13 percent fuel savings, meaning the team’s optimized 33 percent drag reduction could save approximately 650 kilograms of fuel on a typical narrow-body aircraft flying from Seattle to Los Angeles. Also, moving from a passive to an active strake showed wing stall was delayed from 17 degrees to 18 degrees.

The system maintains its advantages across various flight conditions. Testing from -4 to 22 degrees angle of attack showed consistent improvements, with drag reductions exceeding 10 percent throughout the critical cruise range.

The team’s “aha” moment came after their third wind tunnel test during finals week. “We processed all the data at once,” Carbrey said. “You go from having just this raw data that doesn’t really mean anything, and then you get the coefficients at once. Seeing that blowing a little bit of air through this fin changes the aerodynamic capabilities at all was pretty cool.”

“Suddenly we saw that the difference between the passive configuration and the active configuration was pretty significant,” said Spitzley. “It actually worked!”

Additional testing and refinement is next. The team’s current model increased the relative size of the strake to ensure it was big enough for wind tunnel results and it will be resized on next design iterations. The research continues with current master’s student Josh Kruetz testing additional configurations such as flap positions, pneumatic injection, and strake angles building on the capstone team’s foundation.

The smart strake concept addresses one of aviation’s persistent efficiency challenges as industry faces constant pressure to reduce emissions and operating costs. “The industry has accepted passive strakes as a necessary compromise for 50 years,” said Nino. “These students demonstrated a solution that eliminates that compromise while maintaining all the safety benefits at stall.”
