How Precise GNSS Unlocks Scalable, Cost-Effective Mapping for ADAS and Autonomy

The benefits of using the Global Navigation Satellite System and SD maps to keep ADAS/AVs up-to-date.

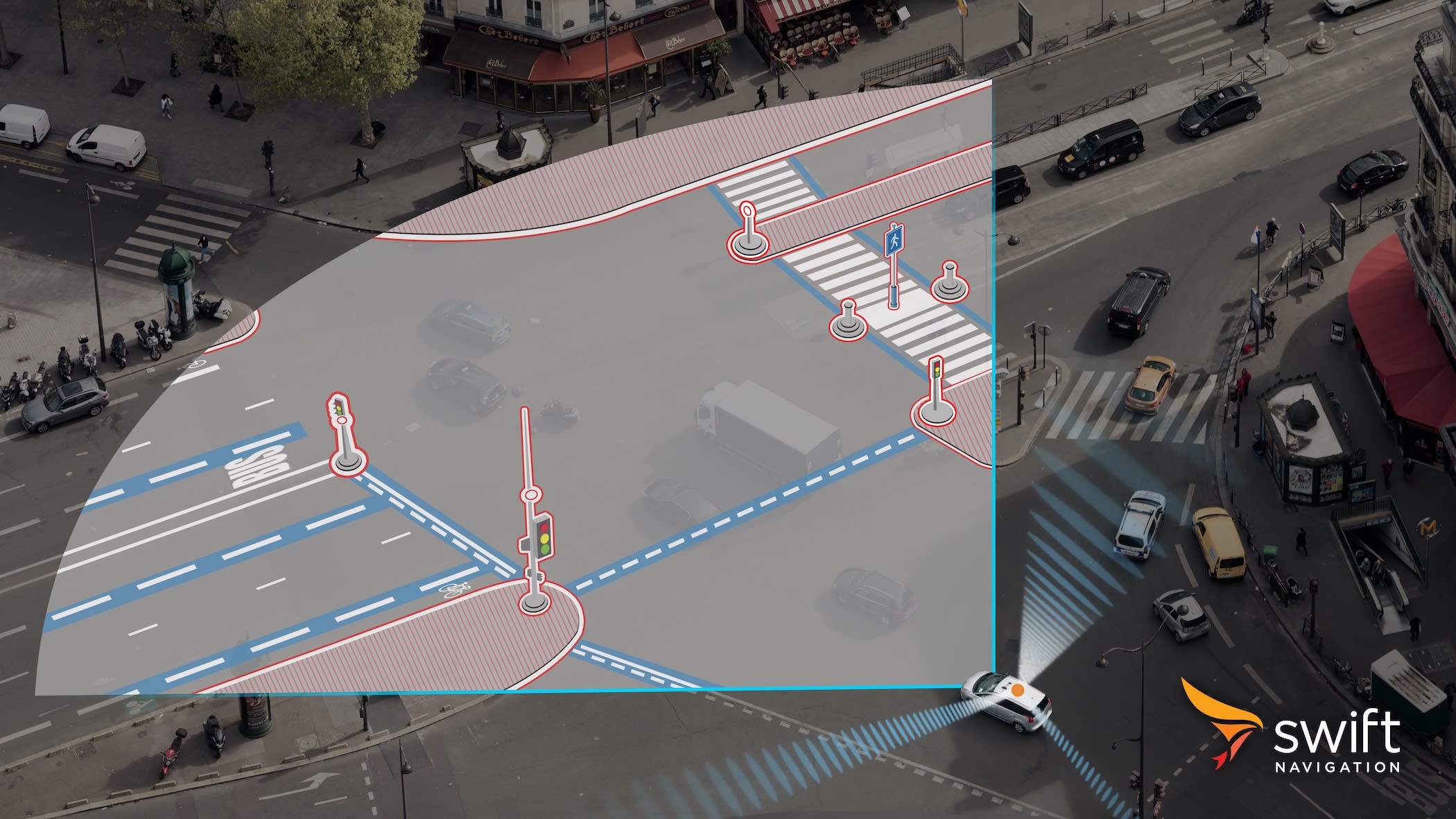

For fleets, GNSS supports efficient operations. For OEMs, it provides a scalable pathway to deploy advanced ADAS and autonomy across entire vehicle lineups. (Swift Navigation)

Advanced driver assistance systems (ADAS) and automated driving functions increasingly depend on accurate, up-to-date road context. Yet current industry narratives often frame the problem around two extremes: perception-only, mapless approaches that lack persistent context beyond the sensor horizon and can struggle in featureless environments, or lidar-heavy high-definition (HD) maps that are costly to build and difficult to keep current at scale.

Augmented, GNSS-anchored, standard-definition (SD) maps strike a practical balance between these approaches. Commercial fleets have demonstrated that precise GNSS enables cost-effective, continuously refreshed mapping at scale, making this architecture a logical foundation for passenger-vehicle OEMs as they expand advanced ADAS and automated driving across production vehicle platforms.

Disambiguation: a core challenge in map maintenance

Disambiguation in conventional HD map pipelines

Conventional HD map creation relies on advanced perception stacks combining lidar, high-resolution cameras, and high-capacity onboard storage. These systems collect large volumes of raw sensor data – often gigabytes per hour per vehicle – which are transmitted to centralized infrastructure for extensive post-processing, including localization refinement, scene reconstruction, and global alignment.

This workflow is necessary because individual drives lack a stable global reference frame and rely on localization that is refined offline rather than anchored in real time. As a result, each pass over a road segment must be reconciled with prior observations and can exhibit meter-level drift relative to the final map frame before changes can be identified with confidence.

A direct consequence is the challenge of disambiguation. With meter-level localization uncertainty, it becomes difficult to determine whether an observation, such as a “new” traffic sign, reflects a genuine change in the map or a displaced observation caused by localization error.

Deterministic disambiguation with precise GNSS

Precise GNSS addresses this limitation by providing centimeter-level positional stability. With this accuracy, map features become spatially deterministic: the absence of a feature at known coordinates indicates removal, the appearance of a feature at an unoccupied location indicates addition, and repeated detections within a narrow spatial envelope confirm persistence. Disambiguation shifts from a probabilistic process to a deterministic one.

Equally important, this process can be performed directly on the vehicle. Rather than uploading raw sensor data for centralized interpretation, vehicles can classify and geolocate features locally and transmit only lightweight metadata describing map changes. Backend systems shift from reconstruction toward aggregation and validation, reducing processing requirements and update latency.

The resulting augmented SD map focuses on the road elements that directly support localization, planning, and control – precise road geometry, lane boundaries, markings, and traffic signs – while omitting dense 3D reconstructions and sensor artifacts that do not materially improve driving decisions.

From specialized mapping fleets to all vehicles

Traditional lidar- and video-based pipelines generate gigabytes of data per vehicle per hour; GNSS-anchored feature detections reduce this to kilobytes. (Swift Navigation)

Historically, map providers relied on small fleets of purpose-built survey vehicles equipped with lidar and complex, high-cost sensing and compute systems. While effective for limited coverage, this model incurs high per-mile costs and refresh cycles that often span months.

At consumer scale, lidar-centric HD map pipelines are difficult to sustain economically and introduce system-level risk. Roads change continuously, and when maps cannot be refreshed at a cadence that matches real-world change, they risk becoming stale. In such cases, outdated map data can introduce false confidence into planning and control systems.

Commercial fleets encountered these constraints early. Rather than expanding specialized survey operations, many fleets equipped existing vehicles, such as delivery vans, ride-hail vehicles, and long-haul trucks, with cameras and precise GNSS, transforming everyday vehicles into continuous mapping agents.

The result is a crowdsourced mapping model in which thousands of vehicles contribute updates daily. Construction zones, missing signage, and lane changes can be detected continuously, enabling maps to be refreshed daily or even hourly rather than annually.

Traditional lidar- and video-based pipelines generate gigabytes of data per vehicle per hour; GNSS-anchored feature detections reduce this to kilobytes. Cloud infrastructure requirements shift from GPU-intensive reconstruction toward lightweight CPU-based aggregation.

For fleets, these improvements translate directly into operational gains driven by map freshness. For OEMs and Tier 1 suppliers, the same architecture provides a viable path to scale ADAS and autonomy without the cost and maintenance burden associated with lidar-heavy HD maps.

Robust positioning enabled by precise GNSS

Vehicle-level positioning performance

GNSS-anchored mapping relies on positioning corrections to improve the accuracy and stability of standard GPS. Uncorrected GPS, with typical errors of 5 to 10 m (16-33 ft), is insufficient for lane-level mapping or reliable feature disambiguation.

When integrated into the vehicle’s sensor-fusion pipeline, modern GNSS corrections enable centimeter-level positioning with bounded error characteristics under validated integrity constraints. This supports robust operation across urban multipath environments, foliage, tunnels, and complex interchanges through inertial bridging and stable heading estimation.

This stability allows camera data to be consistently anchored to a global map, supporting the maintenance of persistent road features and the reliable detection of temporary, safety-critical elements such as construction cones, work zone equipment, and temporary lane shifts.

Delivering precise positioning at scale

Delivering this level of performance at scale requires GNSS correction services that operate as shared infrastructure rather than proprietary, vehicle-specific solutions.

This model is already being deployed through GNSS correction networks such as Swift Navigation’s Skylark, which illustrates how precise GNSS can function as a utility layer for automotive applications. Networks like these provide real-time, centimeter-level accuracy through RTK and PPP-RTK techniques, along with integrity features that bound positioning errors, supporting continental-scale coverage across millions of vehicles.

Its primary contribution is scalability: wide-area coverage enabled by advanced atmospheric modeling, receiver-agnostic integration across automotive GNSS chipsets, and reduced dependence on proprietary hardware.

Augmented SD Maps as a Practical Alternative

The automotive industry does not need to choose between mapless systems and globally deployed, lidar-dense HD maps. A more practical alternative is the use of augmented SD maps that are lightweight, continuously refreshed, anchored in a global reference frame, and built using vehicles already in operation.

Precise GNSS enables this approach by allowing vehicles to disambiguate map features locally, reducing data transfer requirements, backend processing load, and overall system cost. For fleets, this architecture supports efficient operations; for OEMs, it provides a scalable pathway to deploy advanced ADAS and autonomy across entire vehicle lineups without introducing prohibitive cost or operational fragility.

Toward live digital representations of road networks

As vision-based systems continue to advance, GNSS-anchored mapping provides the foundation for live digital representations of road networks that can reflect traffic patterns, construction activity, temporary hazards, and environmental changes.

Mapping evolves from a reactive process toward a more predictive capability – supporting safer operation, faster deployment cycles, and a mapping architecture aligned with the scale and complexity of modern mobility systems.

James Tidd is the executive vice president of engineering at Swift Navigation and wrote this article for SAE Media.
