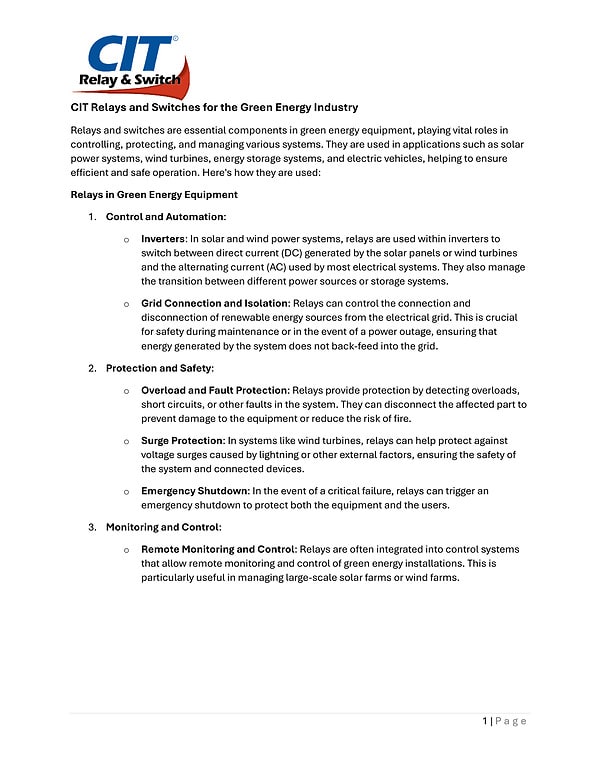

Relays and Switches in Green Energy
SPONSORED BY: ![]()
Relays and switches are essential components in green energy equipment, playing a vital role in controlling, protecting, and managing various systems. They are used in applications such as solar power systems, wind turbines, energy storage systems, and electric vehicles, helping to ensure efficient and safe operation. This white paper seeks to inform about which relays and switches are used in the green energy industry.
Don't have an account?
Overview
The white paper discusses the critical roles of relays and switches in green energy equipment, emphasizing their importance in controlling, protecting, and managing renewable energy systems such as solar power, wind turbines, and energy storage systems.
Key Functions:
-
Manual Control and Safety:
- Disconnect Switches: These isolation switches allow for the manual disconnection of solar panels, wind turbines, or battery systems from the electrical circuit, ensuring safety during maintenance and emergencies.
- Bypass Switches: Used in solar systems to isolate underperforming panels, preventing them from negatively impacting overall system performance.
-
System Control:
- Load Management: Switches help manage electricity distribution from renewable sources, prioritizing loads during peak times.
- Source Selection: In hybrid systems, switches select the most suitable energy source based on availability and cost.
-
User Interface:
- Control Panels: Switches are integral to control panels that allow operators to manage system operations and monitor performance.
- Safety Interlocks: These ensure operations occur only under safe conditions, protecting energy storage systems from unsafe charging or discharging.
Relays in Green Energy: Relays are essential for control and automation, providing functions such as:
- Managing the transition between DC and AC power in inverters.
- Controlling grid connections to prevent back-feeding during maintenance.
- Offering protection against overloads, faults, and surges, and enabling emergency shutdowns.
Advanced Applications: Modern systems integrate relays and switches with smart controllers and sensors, facilitating smart grid interactions, data collection, and renewable energy integration. This enhances system efficiency and stability.
CIT Products: The paper lists various CIT relays and switches designed for the green energy industry, highlighting their role in efficient power management and the integration of renewable energy sources.
In summary, relays and switches are vital for maximizing the efficiency, safety, and sustainability of green energy solutions.
