RF and Microwave Testing Inside Story

Overview

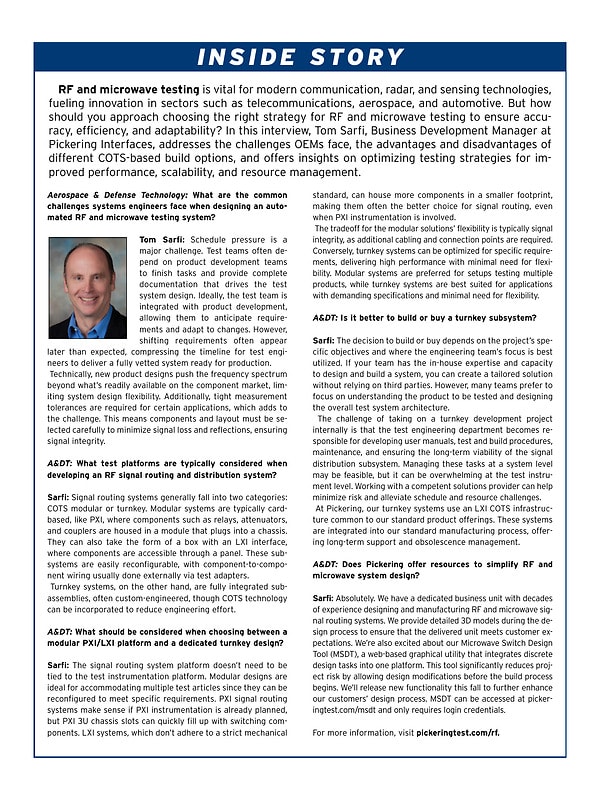

The white paper discusses the complexities and considerations involved in developing RF signal routing and distribution systems, particularly in the context of automated RF and microwave testing. It highlights two primary categories of signal routing systems: modular and turnkey solutions. Modular systems, often card-based like PXI, offer flexibility and reconfigurability, making them suitable for testing multiple products. They allow for easy integration of various components such as relays and attenuators, but may compromise signal integrity due to additional cabling and connection points. In contrast, turnkey systems are fully integrated and optimized for specific applications, delivering high performance with minimal need for flexibility, making them ideal for projects with stringent specifications.

The decision to build or buy a turnkey subsystem is also explored. It emphasizes that the choice depends on the project’s objectives and the engineering team's expertise. While in-house development can lead to tailored solutions, it also places the burden of creating user manuals, maintenance procedures, and long-term support on the test engineering department. Collaborating with a competent solutions provider can mitigate risks and resource challenges.

The paper further discusses the challenges faced by systems engineers in designing automated testing systems, particularly the pressure of tight schedules. Test teams often rely on product development teams to provide complete documentation, which can lead to compressed timelines when requirements shift unexpectedly. Additionally, the rapid advancement of product designs can push frequency requirements beyond available components, complicating system design. Engineers must carefully select components and layouts to minimize signal loss and reflections, ensuring signal integrity.

To assist in overcoming these challenges, Pickering Interfaces offers resources such as a dedicated business unit for RF and microwave signal routing systems and tools like the Microwave Switch Design Tool (MSDT). This web-based utility allows for design modifications before the build process, significantly reducing project risk. The paper concludes by emphasizing the importance of choosing the right strategy for RF and microwave testing to ensure accuracy, efficiency, and adaptability in various sectors, including telecommunications, aerospace, and automotive.
