Hybrid Three-Axis Vibration Reducers

Overview

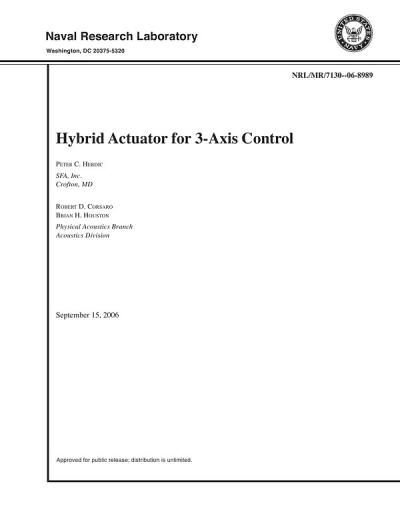

The document titled "Hybrid Actuator for 3-Axis Control" is a memorandum report from the Naval Research Laboratory, authored by Peter C. Herdic, Robert D. Corsaro, and Brian H. Houston. It presents the design, development, and testing of a novel hybrid actuator capable of simultaneous 3-axis vibration reduction, which is significant for applications requiring precise control of acoustics.

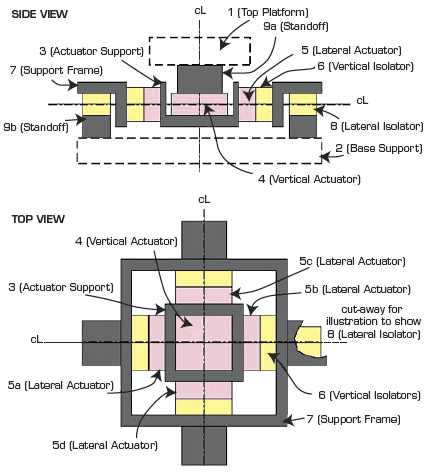

The report begins with an introduction outlining the scope and objectives of the research, emphasizing the need for effective vibration control in various engineering applications. The authors describe the actuator as a hybrid device that combines passive and active elements to achieve enhanced performance in reducing vibrations across three axes.

Key components of the actuator include a highly linear single-crystal piezoelectric actuator, which is crucial for minimizing distortion and achieving high levels of vibration reduction. The report details the fabrication process of the actuator, including the materials used and the assembly techniques employed to ensure robustness and reproducibility.

The results section highlights the actuator's performance, demonstrating a vibration reduction of approximately 30 to 45 dB for both single and multiple tones. This level of performance is attributed to the actuator's design, which allows for effective base acceleration minimization. The authors discuss the implications of these results, noting that the actuator's capabilities make it suitable for a range of applications in vibration-sensitive environments.

The document also includes sections on the testing methodology, where various trials were conducted to assess the actuator's effectiveness. The discussion section reflects on the findings, addressing potential challenges and future directions for research in this area.

In conclusion, the report asserts that this hybrid actuator represents a significant advancement in the field of vibration control, potentially paving the way for further innovations in actuator technology. The authors express optimism about the actuator's application in real-world scenarios, particularly in industries where precise acoustic control is critical.

Overall, the report serves as a comprehensive overview of the development of a cutting-edge 3-axis hybrid actuator, detailing its design, performance, and potential applications in vibration reduction.
