NASA Selects Frontier Aerospace to Continue Development of New Deep Space Thruster

Advanced materials and manufacturing techniques have allowed Frontier Aerospace to develop a thruster that uses a propellant with lower freezing point, cutting weight, complexity and increasing capability.

August 24, 2018

William Kucinski

NASA ’s Space Technology and Mission Directorate (STMD) awarded Simi Valley, Calif.’s Frontier Aerospace Corporation with “ Tipping Point ” funding to qualify Frontier’s Deep Space Engine (DSE) for flight. The compact and lightweight design of the 100-pound force DSE thruster will enable future development of smaller and less expensive spacecraft propulsion systems due to the lower temperature freezing characteristics of its particular propellant.

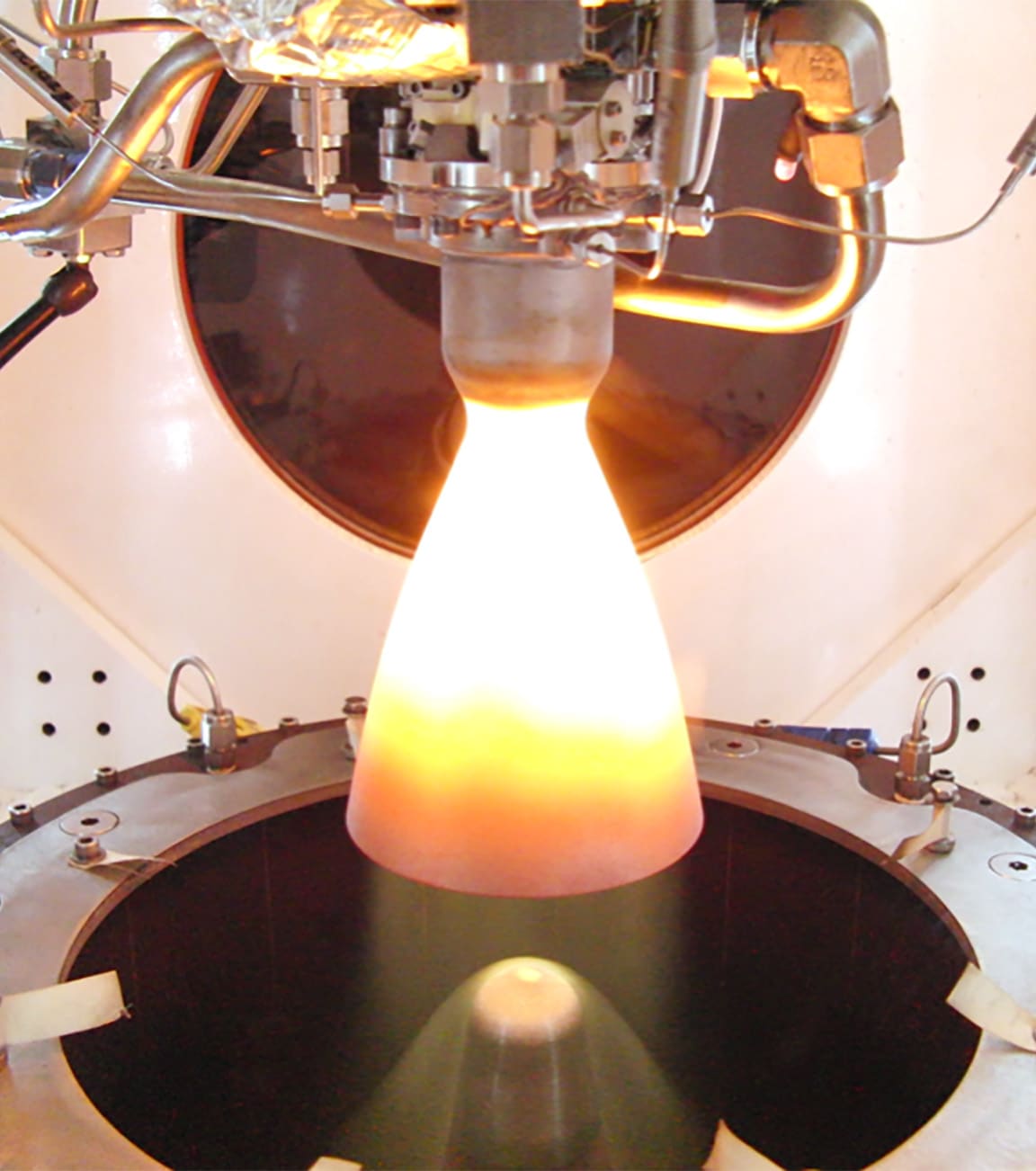

DSE thruster development work horse hardware in vacuum test. (Image source: NASA)

Frontier teamed with Astrobotic Technology, Inc. of Pittsburgh, Pa. to win the award and will provide five DSE thrusters under the program for use in Astrobotic’s Peregrine lunar lander planned for launch at the end of 2020. During a future technology demonstration mission (TDM), the DSE thrusters will be integrated into a propulsion system provided by Dynetics of Huntsville, Ala. for trans-lunar injection, several lunar orbit insertion (LOI) decelerations, a breaking maneuver, and finally a powered descent to the lunar surface.

The propellant that the DSE thruster utilizes – MON-25/MMH hypergolic bipropellant – was key for the award selection.

MON-25/MMH may seem like a mouthful until you describe it as "monomethyl hydrazine (MMH) with a solution of 25% mixed oxides of nitrogen (MON)," or nitric oxide in dinitrogen tetroxide/nitrogen dioxide.

But please, please keep reading.

Basically, the nitric oxide is an oxidizing agent (makes sense) that also reduces MMH’s freezing point – in this case, -67 degrees Fahrenheit. For perspective, NASA typically uses hypergolic bipropellants with a MON-3 which freezes as five degrees Fahrenheit. All margins taken into account, the DSE is capable of operating at a wide propellant temperature range – between -22 to 122 degrees Fahrenheit – while a similar existing thruster may operate with propellant at temperatures between between 45 to 70 degrees Fahrenheit.

And because MON-25 propellants operate at lower temperatures, less power is needed for propellant conditioning for in-space propulsion applications, especially long duration and/or deep-space missions.

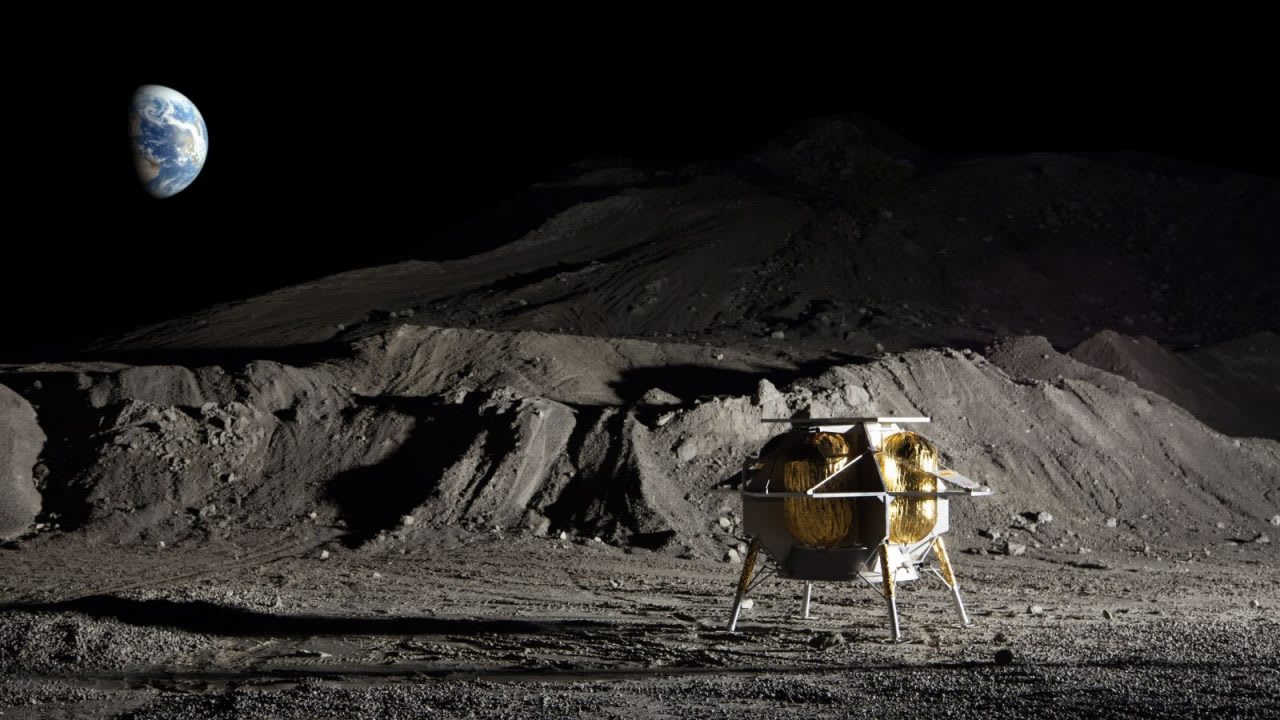

A Peregrine lunar lander flight mock-up. (Image source: Astrobotic Technology)

This is a potential windfall, since science missions require spacecraft propulsion systems that have that Dan Goldin seal of approval: high-performance, lightweight, compact, highly-matured, low-cost, with a short development time.

(It may sound like a tall order, but then again, all transportation solutions are bound by mass, power, and cost. And it gets even more stringent the higher of the ground you go.)

Unlike similarly classed, currently available heritage thrusters, the DSE uses improved designs, modern materials, and advanced manufacturing processes. The lower power rate for the DSE’s propellant conditioning trickles down to battery and solar panel mass reduction and then to a lighter, simpler, more robust, and more flexible design.

And baselining against those heritage thrusters, in this case from the Missile Defense Agency (MDA), NASA’s Marshall Space Flight Center proved the benefit during a 2017 hot-fire test. Even more, they found that DSE thruster tech could be applied to improve existing MDA hardware.

“The DSE thruster fills a significant need in the commercial marketplace. Potential uses include long-duration science missions to asteroids, Mars, Europa and other exomoons, and lunar landers, as well as short-duration missions for the Missile Defense Agency (MDA),” says Sharad Bhaskaran, Mission Director at Astrobotic.

All-in-all, its adaptable for spacecraft main propulsion, reaction control systems, and lander descent and ascent. The reduced system weight and volume increases available payload mass and/or acceleration capability, potentially expanding launch vehicle applications.

For Astrobotic, the DSE thruster means that the company can accommodates multiple customer payloads on a single Peregrine launch at an industry-defining low price of $1.2 million per kilogram. So far, they have 12 company deals for its first Moon mission and 130 customer payloads in the pipeline.
