New SmartDisplay™ Products Enable More Versatile HMI Designs
SPONSORED BY: ![]()
Building better Human-Machine Interface solutions to monitor and control complex equipment and systems is a key priority for design engineers. SmartDisplay™ intelligent switches are ideal components for HMI applications. They integrate a compact programmable graphic display onto an electromechanical switch, enabling powerful, flexible, and space-saving HMI solutions.
Don't have an account?
Overview
The white paper discusses NKK Switches' SmartDisplay™ intelligent switches, which have gained popularity across various industries, including automotive, medical, aerospace, and industrial applications. These switches integrate a programmable graphic display with electromechanical functionality, offering a powerful and flexible solution for Human-Machine Interface (HMI) designs. The SmartDisplay products aim to enhance user experience by providing tactile feedback and reducing the complexity of control schemes, allowing users to quickly access relevant functions without navigating through cumbersome menus.
NKK is expanding its SmartDisplay product line with new assemblies that feature enhanced data communication capabilities and various configurations. This expansion is designed to meet the growing demand for versatile HMI solutions in increasingly complex environments. Notably, the SmartDisplay devices do not require custom or proprietary software licensing, which helps minimize development time and costs. Each device comes with free configuration software, enabling users to easily load images and program the displays as needed.

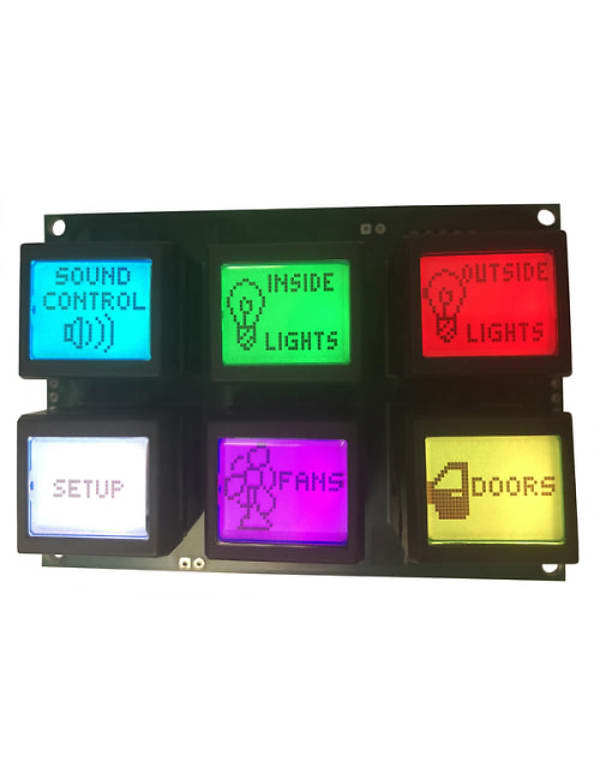

The paper highlights specific products, such as the IS-70052 SmartDisplay controller, which features six pushbuttons and operates on CAN (Controller Area Network) or USB data communication networks. This unit is particularly suited for recreational vehicles (RVs) and is also applicable in automotive and defense industries. It can store and display up to 60,000 images, allowing for extensive customization and control of connected devices.
Another product mentioned is the IS-S04G1LC-S SmartDisplay controller, designed for controlling lights or fans. This compact unit includes four RGB-backlighted pushbuttons, each with its own LCD display, and offers features like pulse width modulation for adjusting brightness and temperature monitoring.
Additionally, the IS-70053 SmartDisplay is introduced for use in Power-over-Ethernet (PoE) control systems, featuring a monochrome OLED display and a three-position rocker switch. This device simplifies power delivery by using Ethernet cabling, eliminating the need for separate power supplies.
Overall, NKK Switches' SmartDisplay products represent a significant advancement in HMI technology, providing designers with innovative tools to create efficient, user-friendly control systems that meet the demands of modern applications. The company emphasizes its commitment to quality, reliability, and customer support, ensuring successful implementation of these solutions.
