Hybrid Ultra-Low VOC and Non-HAP Rain Erosion Coatings

Developing a rapid-curing rain erosion coating based on a unique glycidyl carbamate (GC) hybrid resin chemistry that offers rapid reactivity and adhesion combined with the erosion, flexibility, weathering and mechanical properties of polyurethane systems.

Numerous military aircraft and shipboard surfaces, such as radomes, antennas, gun shields, wing leading edges, and helicopter blade leading edges, are coated with a specialized erosion-resistant protective coating possessing strict performance requirements. These protective coatings must provide excellent rain erosion resistance, superior mechanical properties, good adhesion to the substrate and meet a host of other metrics outlined in MIL-PRF-32239 and SAE AMS-C- 83231A.

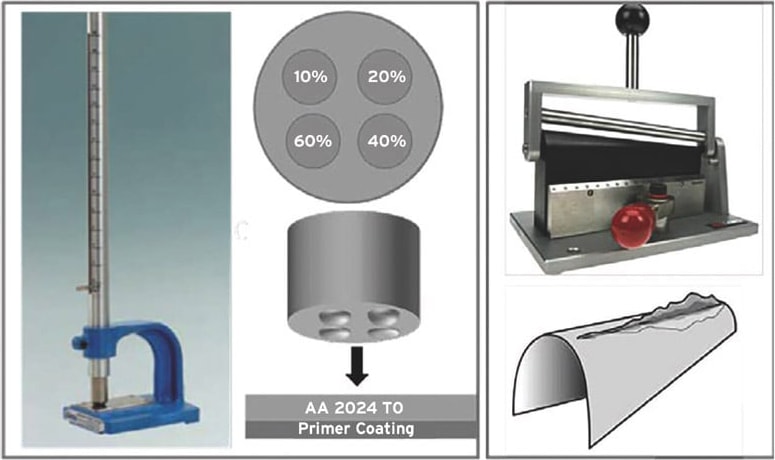

GE reverse impact testing (left) and conical mandrel bend testing (right) were performed on pretreated AA2024-O samples coated with relevant GC or COTS rain erosion coatings.

Historical protective coatings that meet these metrics are often polyurethane-based and contain large quantities of volatile organic compounds (VOCs), hazardous air pollutants (HAPs), and isocyanates which are hazardous and may be prohibited for use in the near future under the Prohibited and Controlled Chemical List (PCCL). A drastic reduction in VOCs, HAPs, and other hazardous compounds in such coatings will lead to significant environmental and occupational safety improvements, as well as increased coating application productivity associated with reduced application and cure times.

Protective tapes, an alternative to rain erosion protective coatings, have recently been developed to reduce applicator occupational safety hazards; however, these tapes have shown a drastic decrease in performance compared to conventional coating systems. Currently no wear resistant coating or tape alternative can meet the desired requirements for VOCs, HAPs, and isocyanates while meeting the performance metrics under MIL-PRF-32239A and SAE AMS-C-83231A.

The objective of Luna’s limited scope program was to develop a rapid curing rain erosion coating that has low VOC content and is non-HAPs via the use of exempt solvent technologies. The goal was to develop a rain erosion coating based on a unique glycidyl carbamate (GC) hybrid resin chemistry that offers epoxy-type rapid reactivity and adhesion combined with excellent erosion, flexibility, weathering, and mechanical properties typical of polyurethane systems.

Luna focused on coating chemistry and full formulation development followed by property validation per MIL-PRF-32239A and SAE AMS-C-83231A, including rain erosion testing. Variants were initially screened for erosion performance using a custom ultrasonic cavitation test method developed by Luna. Other key metrics that were tested include impact resistance, low temperature flexibility, dry/wet adhesion, elongation, and tensile strength. Luna assessed top performing coatings for application time, coating buildup, and cure time prior to full rain erosion testing at the University of Dayton Research Institute per SAE AMS-C-83231A requirements.

This limited scope program was enabled by the completion of several individual tasks that culminated in the demonstration of highly flexible GC coating variants. The research team synthesized and formulated a variety of resins and coatings intended to bolster the toughness and impact resistance over prior GC coatings by optimizing the resin chemistry, investigating new curative packages, and carefully selecting additives for toughness and durability. To date, those efforts have resulted in several formulations that show excellent flexibility, adhesion, and impact resistance and are comparable to a commercial rain erosion coating system. The program demonstrated that there is significant room to create GC-based environmentally-friendly rain erosion systems and reduce risk associated with hazardous materials during coating application. Additional work will be needed to optimize coatings for rain erosion performance and move the technology from the development phase toward SAE AMS- C-83231A qualification and full DoD transition.

This work was done by Adam Goff of Luna Innovations, Inc. for the DoD’s Strategic Environmental Research and Development Program. SERDP-0002

Topics:
Aerospace Aircraft Aircraft Antennas Coatings & Adhesives Coatings, colorants and finishes Coatings, colorants, and finishes Defense Electronic equipment Emissions Helicopters Helicopters Materials Materials properties Mechanical Components Military aircraft Military aircraft Rotary-wing aircraft Rotary-wing aircraft Vehicles Vehicles Volatile organic compounds
This Brief includes a Technical Support Package (TSP).
Document cover
Hybrid Ultra-Low VOC and Non-HAP Rain Erosion Coatings

(reference SERDP-0002) is currently available for download from the TSP library.

Don't have an account?

More From SAE Media Group

    Magazine cover
    Aerospace & Defense Technology Magazine

    This article first appeared in the August, 2019 issue of Aerospace & Defense Technology Magazine (Vol. 4 No. 5).

    Read more articles from this issue here.

    Read more articles from the archives here.

    Overview

    The document is the final report for the SERDP Project WP-2603, titled "Hybrid Ultra-Low VOC and Non-HAP Rain Erosion Coatings," authored by Mr. Adam Goff from Luna Innovations, Inc. It was prepared under the Department of Defense's Strategic Environmental Research and Development Program (SERDP) and aims to address the need for advanced coatings that can withstand rain erosion while being environmentally friendly.

    The report outlines the development and evaluation of hybrid coatings that are characterized by ultra-low volatile organic compounds (VOCs) and are free from hazardous air pollutants (HAPs). These coatings are particularly relevant for military applications, where aircraft and other equipment are exposed to harsh environmental conditions, including rain erosion, which can significantly impact their performance and longevity.

    The document emphasizes the importance of reducing VOC emissions in compliance with environmental regulations while maintaining the protective qualities of coatings. The research focuses on formulating coatings that not only meet performance standards but also contribute to sustainability goals by minimizing harmful emissions.

    Key sections of the report likely include an introduction to the problem of rain erosion in coatings, a review of existing technologies, and the rationale for developing hybrid solutions. The methodology for testing the coatings, including laboratory and field evaluations, is also a critical component, providing insights into the effectiveness of the new formulations.

    The report may present data on the performance of the hybrid coatings compared to traditional options, highlighting improvements in durability, adhesion, and resistance to environmental factors. Additionally, it may discuss the potential applications of these coatings in various military and industrial contexts, showcasing their versatility and effectiveness.

    While the document does not provide specific results or conclusions in the provided pages, it is expected to conclude with recommendations for future research and development, as well as potential pathways for implementation in military and commercial settings.

    Overall, this report represents a significant step towards developing environmentally friendly coating solutions that meet the rigorous demands of military applications, aligning with broader sustainability initiatives while ensuring the protection and longevity of critical equipment.
